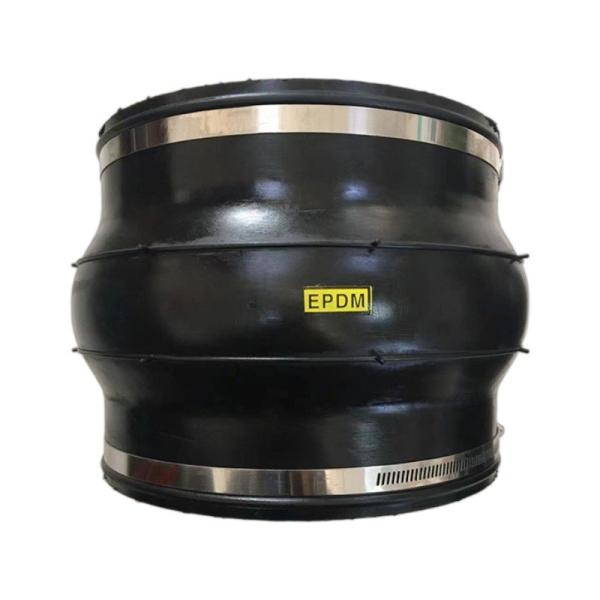

Customized Acid Alkali High Temperature Resistant Clamp Type Flexible Rubber Joint Pipeline Shock Absorber

The clamp-type flexible rubber joint uses a reinforced stainless steel 304 clamp.
It is composed of a fabric-reinforced rubber sphere and a metal clamp, and is used for pipeline vibration isolation and noise reduction, and displacement compensation;
It is a pipeline joint with high elasticity, high air tightness, medium resistance and weather resistance.

The DN50-DN600 KXT clamp-type flexible rubber joint uses a clamp instead of a flange and bolts.
When in use, the two ends of the clamp rubber joint can be
conveniently mounted on the pipe to be connected, and the rubber joint is fixedly connected to the pipe through a stainless steel clamp.
When disassembling, just loosen the clamp; thereby achieving the purpose of compensating for the displacement of the pipe caused by thermal expansion and contraction and water delivery.

Drawing of clamp rubber joint

Flexible Rubber Expansion Joint Data Sheet

Features and advantages of clamp rubber joints

• Good flexibility: adapt to complex displacement and vibration
• Easy installation: the clamp design simplifies the installation steps, no welding or flange alignment is required
• Corrosion resistance: rubber material can resist a variety of chemical media
• Economical: the cost is lower than metal compensators, and the maintenance cost is low

Factory Pictures

Installation steps of clamp joint
1. Clean the end of the pipe to ensure there are no burrs
2. Put the rubber joint on the pipe and adjust it to the appropriate position
3. Tighten it with a clamp to ensure uniform force (avoid leakage caused by over-tightening on one side)
