    EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints

    Ask Lasest Price
    Brand Name : Liang He
    Model Number : C2F
    Certification : ISO 9001
    Price : $58-168 per set
    Payment Terms : T/T, D/A, D/P, Western Union, MoneyGram, L/C
    Supply Ability : 6000 piece per month
    Delivery Time : 3-7day
    • Product Details
    • Company Profile

    EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints

    EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints


    Product Introduction

    The detachable double flange force transmission joint is suitable for the pipeline with flange connection on both sides, and is used as a fitting to connect the pipeline in the pipeline system, which can reduce the pressure of the pipeline in the work, and is safe, reliable and stable. The detachable double flange power transmission joint has the characteristics of simple structure, easy to use, strong tightness and wide range of use.


    Product Role

    The double flange power transmission joint is mainly used for the loose sleeve joint press of pumps, valves and other accessories. The double-flange loose sleeve power transmission joint is composed of loose sleeve expansion joint, short pipe flange, force transmission screw and other components. It transmits the pressure thrust (blind force) of the connected parts and compensates for the piping error, and cannot absorb the axial displacement. It is mainly used for loose sleeve connection of pumps, valves, pipelines and other accessories.


    Product parameters

    EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints


    NONAMEQUANTITYMATERIAL
    1Body1QT450-10,Q235B
    2Rubber sealing ring1EPDM,NBR,etc.
    3Gland1QT450-10,Q235B
    4Limit stub1Q235B
    5BoltnQ235B,20#
    6NutTnQ235B,20#

    DN

    Tube outer

    diameter

    DimensionsFlange connection size
    0.6Mpa1.0Mpa
    LΔLDD1n-ThbDD1n-Thb
    6576200401601304-M12161851454-M1620
    180891901504-M16182001608-M1622
    10011421017022018024
    1251402402008-M162025021026
    1501682652252852408-M20
    2002193202802234029528
    25027337533512-M162439535012-M20
    3003252205044039512-M202444540012-M2028
    3503774904452650546016-M2030
    40042654049516-M202856551516-M2432
    4504805955502861556520-M2432
    53053064560020-M203067062034
    60063024075570520-M243078072520-M2736
    70072086081024-M243289584024-M2740
    8008203506097592024-M2734101595024-M3044
    9009201075102024-M27361115105028-M3046
    100010201175112028-M27361230116028-M3350
    120012203701405134032-M30401455138032-M3656
    140014201630156036-M33441675159036-M3962
    160016203801830176040-M33481915182040-M4568
    180018202045197044-M36502115202044-M4570
    200020204002265218048-M39542325223048-M4574
    240024202475239052-M39602550244052-M5280
    220022202685260056-M39622760265056-M5282
    26002620450802905281060-M45642960285060-M5288
    280028203115302064-M45683180307064-M5294
    300030203315322068-M45703405329068-M56100
    320032203525343072-M4576////

    Product Installation
    The product is suitable for pipes connected with flanges on both sides, adjust the installation length of both ends of the product and the flange during installation, tighten the gland bolts diagonally, use them to become a whole, and have a certain amount of displacement, which is convenient for installation and maintenance, and adjusts according to the size of the site when it is on site. The counteraxial thrust can be transmitted to the entire pipe during operation.


    Different types of products are displayed

    EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints

    Single flange limit Double flange force Dismantling joint Double flange limit

    expansion joint transmission joint expansion joint

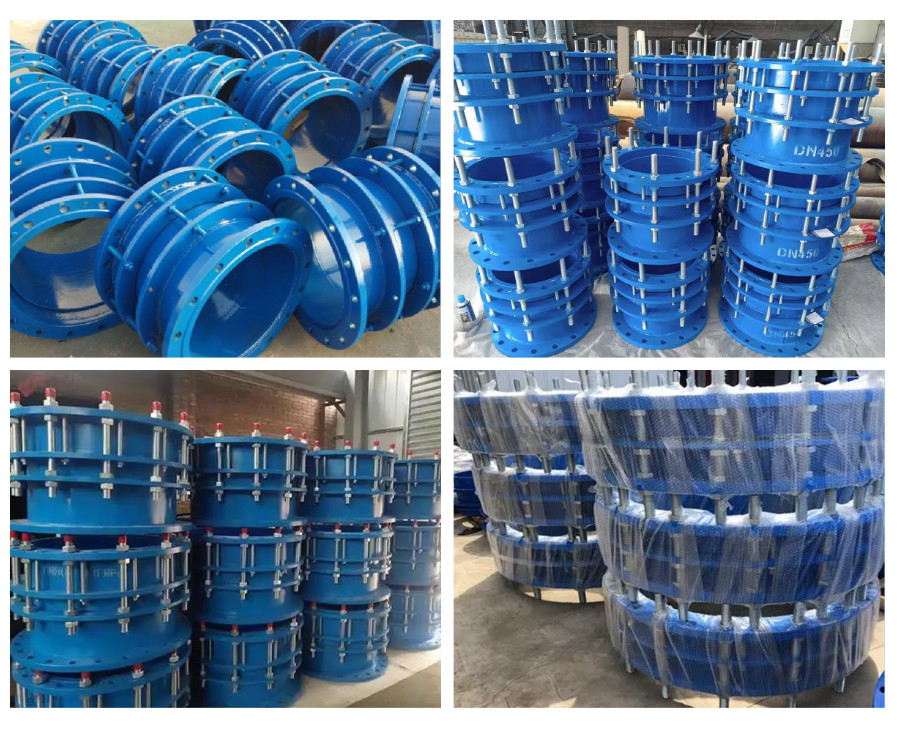

    Inventory display


    EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints


    Workshop display


    EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints
