    DN300 Pn16 Plumbing Compensator Double Flange Ss304 316 Dismantling Joint

    Ask Lasest Price
    Brand Name : Liang He
    Model Number : C2F
    Certification : ISO 9001
    Price : $56.2-189.6 per set
    Payment Terms : T/T, D/A, D/P, Western Union, MoneyGram, L/C
    Supply Ability : 8000 piece per month
    Delivery Time : 1-7 day
    • Product Details
    • Company Profile

    DN300 Pn16 Plumbing Compensator Double Flange Ss304 316 Dismantling Joint

    Product Introduction

    The dismantling joint consists of the main body, the sealing ring, the gland, the telescopic short pipe and other main parts. It is a new product that connects pumps, valves and other equipment with pipelines. It connects them into a whole through full bolts, and has a certain displacement. In this way, it can be adjusted according to the installation size on site during installation and maintenance, and the axial thrust can be transferred back to the whole pipeline during work. This not only improves work efficiency, but also plays a certain protective role for pumps, valves and other equipment.


    Product Advantages

    1. Good chemical and thermal stability
    2. Good anti-friction and self-lubrication
    3. Good sealing performance
    4. Ease of installation and maintenance
    5. Wide range of application


    Product parameters

    DNPN10PN16
    DKBolt holesLHDKBolt holesLH
    BoltN-φd2BoltN-φd2
    40150110M164-19180330150110M164-19180330
    50165125M164-19180330165125M164-19180330
    65185145M164-19180330185145M164-19180330
    80200160M168-19200350200160M168-19200350
    100220180M168-19200350220180M168-19200350
    125250210M168-19200350250210M168-19200350
    150285240M208-23200350285240M208-23200350
    200340295M208-23220380340295M2012-23220380
    250400350M2012-23220380400355M2412-28230400
    300455400M2012-23220380455410M2412-28250420
    350505460M2016-23230400520470M2416-28260440
    400565515M2416-28230400580525M2716-31270460
    450615565M2420-28250420640585M2720-31270460
    500670620M2420-28260450715650M3020-34280490
    600780725M2720-31260460840770M3320-37300520
    700895840M2724-31260460910840M3324-37300520
    8001015950M3024-342905001025950M3624-40320550
    90011151050M3028-3429050011251050M3628-40320560
    100012301160M3328-3729051012551170M3928-43340600
    120014551380M3632-4032057014851390M4532-49360650

    Product installation steps

    1. Loosen the pressure plate bolts: Before installation, you need to loosen the pressure plate bolts and pull the product to the installation length.
    2. Align the flanges: Align the two flanges, making sure they are parallel and aligned. For the power transmission joint with the inner sleeve, care should be taken to make the direction of the inner sleeve consistent with the direction of the medium flow.
    3. Install the sealing gasket: Place the sealing gasket between the two flanges to ensure that the gasket is installed correctly to prevent fluid leakage.
    4. Tighten the bolts: Use the diagonal method to tighten the bolts and nuts in turn to make the two flanges tightly connected together. During the tightening process, it should be ensured that the tightening torque of the bolt and nut meets the requirements.
    5. Adjust the displacement: Adjust according to the size of the site to ensure that the force transmission joint has a certain amount of displacement, which is convenient to adjust according to the needs during installation and maintenance.


    Hot selling products


    DN300 Pn16 Plumbing Compensator Double Flange Ss304 316 Dismantling Joint DN300 Pn16 Plumbing Compensator Double Flange Ss304 316 Dismantling Joint DN300 Pn16 Plumbing Compensator Double Flange Ss304 316 Dismantling Joint DN300 Pn16 Plumbing Compensator Double Flange Ss304 316 Dismantling Joint

    Single sphere Rubber duckbill Lined with Semi circle mini

    rubber joint check valve PTFE bellows type repair clamp

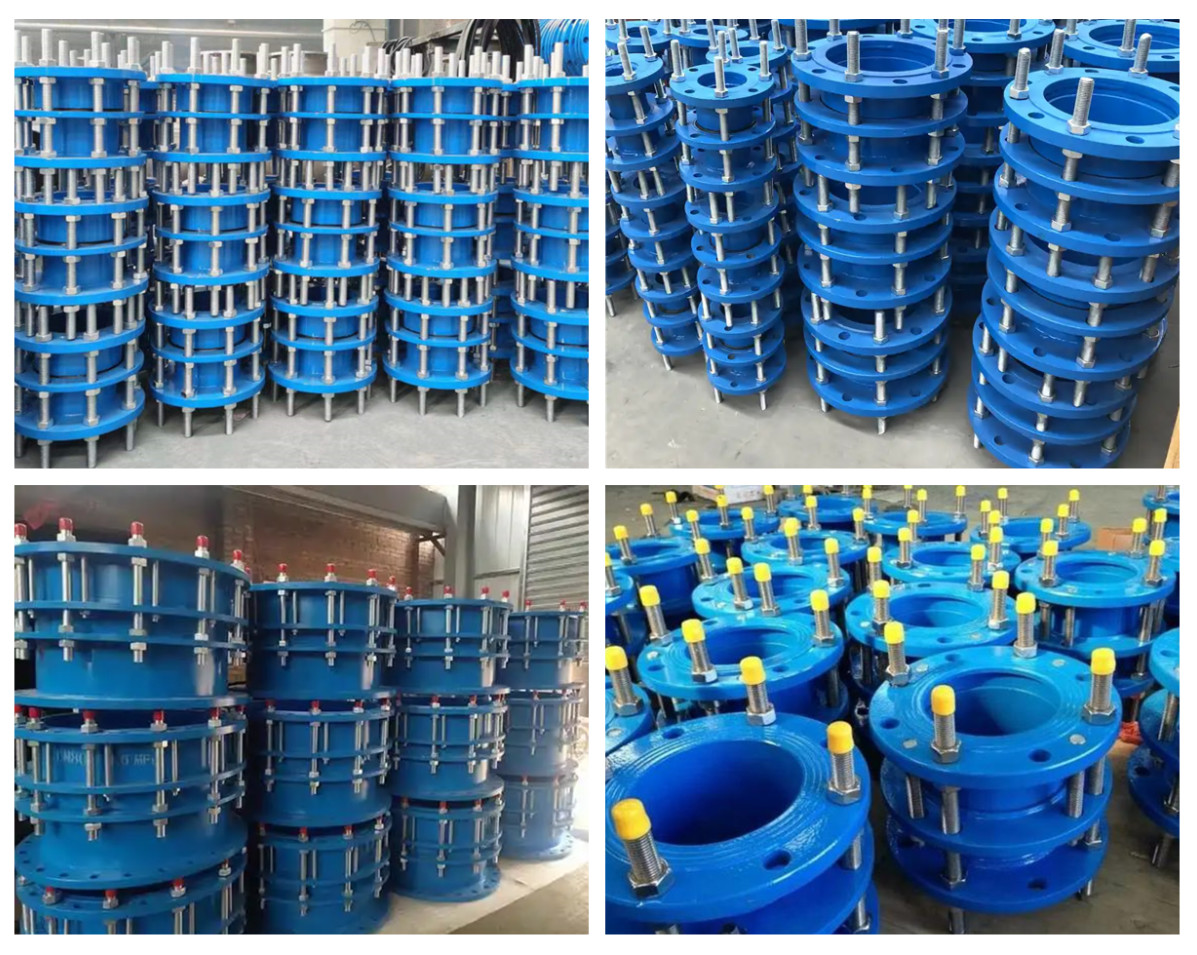

    Inventory display

    DN300 Pn16 Plumbing Compensator Double Flange Ss304 316 Dismantling Joint


    Workshop display

    DN300 Pn16 Plumbing Compensator Double Flange Ss304 316 Dismantling Joint
