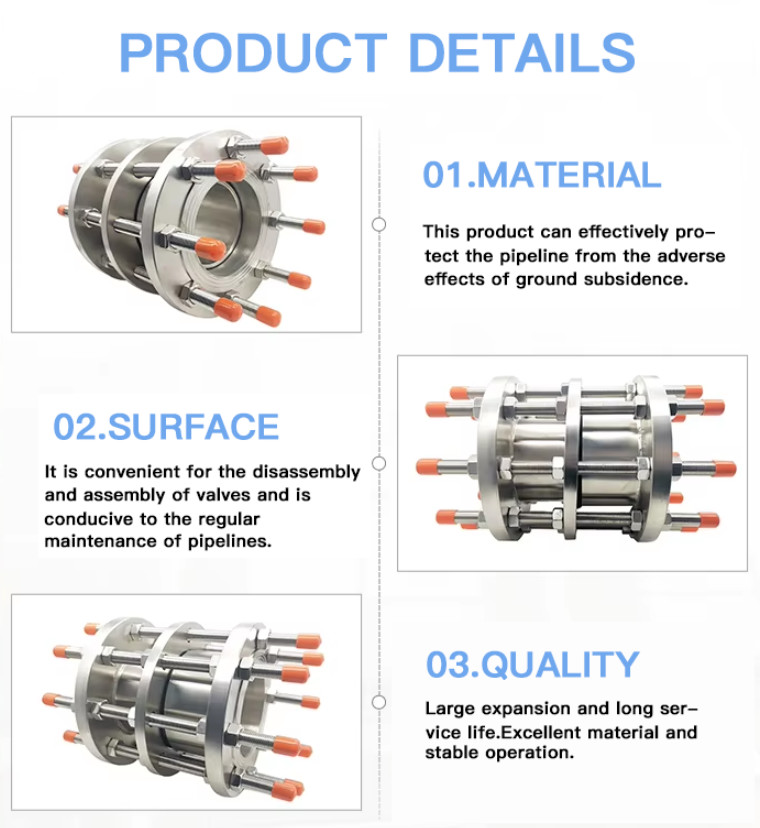

BS Standard PN10 PN16 SS316 Stainless Steel Double Flange Telescopic Dismantling Joint

Product structure composition

1. Flange body: The detachable joint is usually composed of a long flange body and a short flange body, which are used to connect pipes or equipment.
2. Sealing ring: The sealing ring is located between the flange bodies, which plays a sealing role to prevent liquid or gas leakage.
3. Stud: The stud is used to connect the flange body to ensure the tight connection of the joint.
4. Washer: The washer is placed between the stud and the nut to further enhance the tightness of the connection.
5. Nut: The nut is used to tighten the stud and ensure the stable connection of the joint.

Product Advantages
1. Flexible operation, fast and light opening and closing. Low fluid resistance.
2. Simple structure, relatively small size, light weight, easy to maintain.
3. The sealing performance is good, not limited by the installation direction, and the flow direction of the medium can be arbitrary.
4. No vibration, low noise.

Product parameters

Tips:The above data is only part of the data, if you need a special size, please contact us.

Product installation precautions

Before installation, the model, specification and pipe configuration of the joint should be checked to ensure that the design requirements are met. At the same time, prepare the necessary tools such as wrenches, screwdrivers, measuring tools, etc., and check the specifications and types of dismantling joints to ensure that they match the size of the pipe.

Related products
To choose us is to choose rest assured and trust.

1.Single Sphere Rubber Joint

2.Rubber Duckbill Check Valve

3.Gibault Joint

4.Flange Adaptor

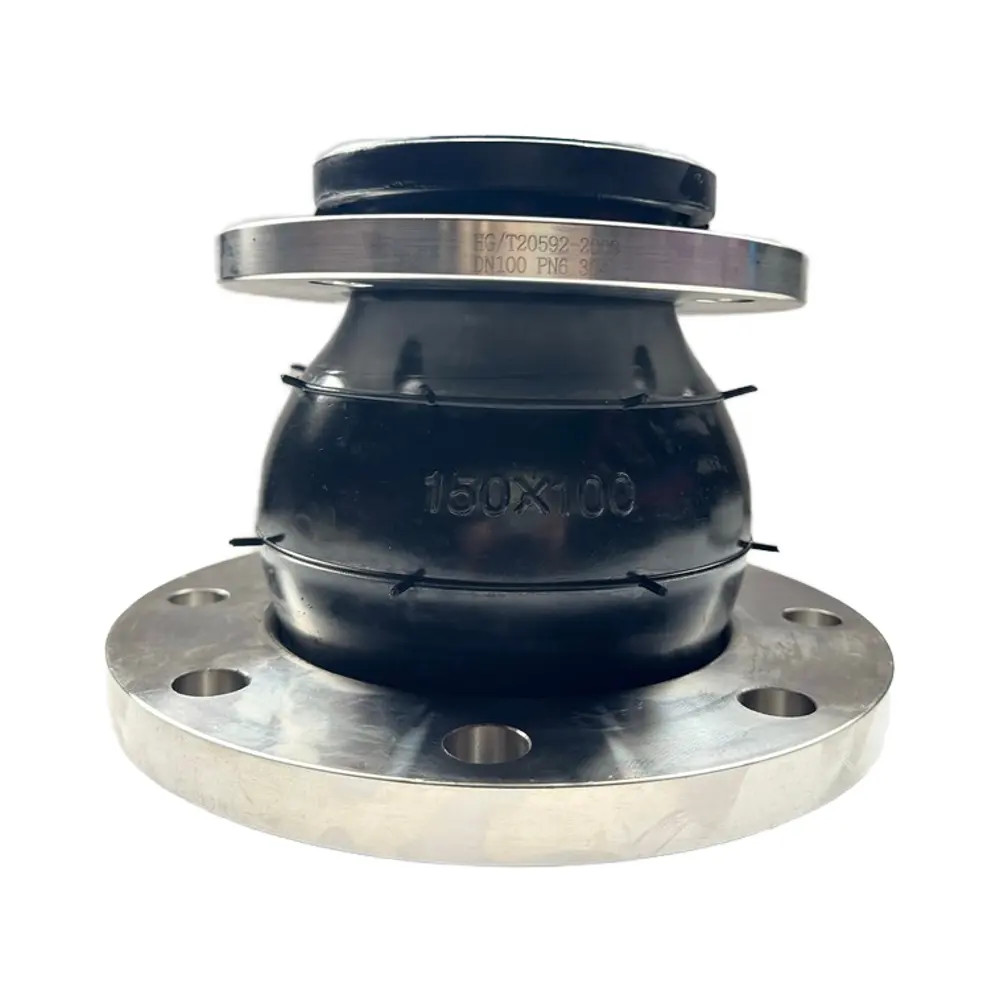

5.Concentric Reducer Rubber Joints
