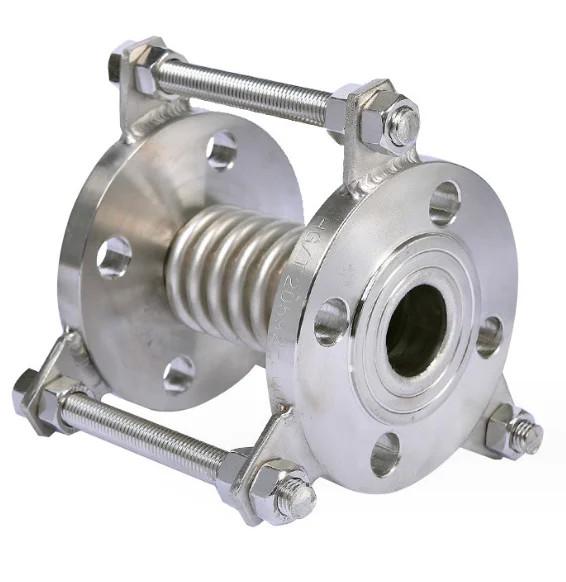

    Exhaust Compensator Stainless Steel 316l Flexible Metal Steam Bellow Expansion Joint

    Ask Lasest Price
    Brand Name : Lianghe
    Model Number : JDZ
    Certification : ISO9001
    Price : $15-$40 set
    Payment Terms : T/T, D/A, D/P, Western Union, L/C, MoneyGram
    Supply Ability : 8000 set per month
    Delivery Time : 5-12 work days
    • Product Details
    • Company Profile

    Exhaust Compensator Stainless Steel 316l Flexible Metal Steam Bellow Expansion Joint


    Exhaust Compensator Stainless Steel 316l Flexible Metal Steam Bellow Expansion Joint

    Exhaust Compensator Stainless Steel 316l Flexible Metal Steam Bellow Expansion Joint


    Bellow expansion joint is a compensation element, effective use of bellows telescopic body deformation, dimensional change in absorption pipeline, pipe, thermal expansion and contraction caused by pipeline transverse and angular displacement. It is mainly used for noise reduction and vibration reduction. It is widely used in modern industry.


    Function of bellow expansion joint

    1. compensating the axial, transverse and angular thermal deformations of the absorption duct.
    2. to facilitate the installation and disassembly of valves and pipes.
    3. to reduce the impact of equipment vibration on the pipeline.


    The structure of the bellow expansion joint


    NONameQuantityMaterial
    1Flange2Q235B,SS304,SS316L
    2Bellow1SS304,SS316L
    3Tie rod3Q235B,SS304,SS316L

    Bellows Expansion Joint Connection Data


    Nominal Diameter

    (mm)

    Wave numberPressure levelEffective area of ​​bellowsMaximum outer diameter
    0.250.61.01.62.5
    Axial compensation/mm,Stiffness(N/mm)
    32825/2122/2620/2618/63/16225
    321650/1146/1441/1436/32/16225
    40825/2822/2420/4418/8915/9823244
    401650/1446/2241/2236/4531/4723244
    50825/3022/5120/7018/7015/10637259
    501650/1646/2641/3536/3531/5537259
    65833/2830/3526/4422/5515/13855270
    651242/1638/2238/3234/4031/7055270
    80840/2036/2634/3328/4119/6881284
    801053/1449/1749/2143/2629/5081284
    100645/4745/6040/7535/9325/54121304
    1001076/2674/3264/4057/5038/33121304
    125548/3842/4738/5934/7429/117180334
    125985/2377/2966/3658/4549/63180334
    150549/4244/5040/6234/7829/92257364
    150879/3471/4364/5154/5950/56257364
    200452/4946/5542/6838/7829/97479442
    200673/3165/4459/5253/5846/65479442

    Note:The above data is regular product data, we can also customize it according to your needs.


    Factory Stock



    FAQ


    Q1:How to guarantee the quality?
    A: We have the QC department, the quality inspector inspects every step in the processing process, and reports to the customer for inspection.As a professional manufacturer of bellow expansion joint, each production process is strictly controlled.


    Q2: Can I get some samples?
    A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.


    Q3: Do you receive customized order?
    A: Yes, ODM & OEM are welcomed.


    Q4: What's the lead time?
    A: According to the order quantity, small order usually need 10-15 days, big order need negotiation.


    Q5:Do you have a minimum order quantity for this product?
    A: we will build a business with you, even if it is 1PC. We believe that this cooperation will be a long-term cooperative relationship with our high quality, competitive price and good after-sales service.


    Q6: What's your payment terms?
    A: We receive ,T/T, West Union, Cash and etc.
