DN600 PN16 Pipe Fittings Double Flange Flexible Coupling SS304 SS316 Dismantling Joint
Product structure composition
1. Double flange: Used to connect with both ends of the pipe to provide a stable
connection interface.
2. Loose sleeve: Located between the double flanges, allowing the pipe to expand or
deflect within a certain range to adapt to the deformation of the
pipeline system.
3. Force transmission element: Transmit the force in the pipeline system to ensure the stability
and safety of the pipeline system.
Technical parameters and material requirements for detachable joints
1. Chemical stability: Almost all chemical resistance, strong acids, strong alkalis or
strong oxidants and solvents have no effect on it.
2. Thermal stability: The pyrolysis temperature is above 400°C, and it can work normally
in the temperature range of -200°C~300°C.
3. Friction reduction and self-lubrication: The friction coefficient is low, the surface has outstanding
self-lubrication, and almost all viscous substances cannot adhere
to its surface.
Product parameters
Name | DN600 PN16 Pipe Fittings Double Flange Flexible Coupling SS304 SS316 Dismantling Joint |
Size | DN50-DN3200mm |
Pressure | 0.6-4.0MPa |
Temperature | -10℃ — 70℃ |
Flange Material | SS304,SS316,Q235 |
Bolt Material | GD4.8,GD8.8,SS304,SS316,etc. |
Flange Standard | ANSI,DIN,JIS,BS,etc. |
Medium | Flowing water,neutral liquids and sewage |
Application Fields | Machinery, medical equipment, water treatment equipment, etc. |
DN | PN10 | PN16 | ||||||||||
D | K | Bolt holes | L | H | D | K | Bolt holes | L | H | |||
Bolt | N-φd2 | Bolt | N-φd2 | |||||||||
40 | 150 | 110 | M16 | 4-19 | 180 | 330 | 150 | 110 | M16 | 4-19 | 180 | 330 |
50 | 165 | 125 | M16 | 4-19 | 180 | 330 | 165 | 125 | M16 | 4-19 | 180 | 330 |
65 | 185 | 145 | M16 | 4-19 | 180 | 330 | 185 | 145 | M16 | 4-19 | 180 | 330 |
80 | 200 | 160 | M16 | 8-19 | 200 | 350 | 200 | 160 | M16 | 8-19 | 200 | 350 |
100 | 220 | 180 | M16 | 8-19 | 200 | 350 | 220 | 180 | M16 | 8-19 | 200 | 350 |
125 | 250 | 210 | M16 | 8-19 | 200 | 350 | 250 | 210 | M16 | 8-19 | 200 | 350 |
150 | 285 | 240 | M20 | 8-23 | 200 | 350 | 285 | 240 | M20 | 8-23 | 200 | 350 |
200 | 340 | 295 | M20 | 8-23 | 220 | 380 | 340 | 295 | M20 | 12-23 | 220 | 380 |
250 | 400 | 350 | M20 | 12-23 | 220 | 380 | 400 | 355 | M24 | 12-28 | 230 | 400 |
300 | 455 | 400 | M20 | 12-23 | 220 | 380 | 455 | 410 | M24 | 12-28 | 250 | 420 |
350 | 505 | 460 | M20 | 16-23 | 230 | 400 | 520 | 470 | M24 | 16-28 | 260 | 440 |
400 | 565 | 515 | M24 | 16-28 | 230 | 400 | 580 | 525 | M27 | 16-31 | 270 | 460 |
450 | 615 | 565 | M24 | 20-28 | 250 | 420 | 640 | 585 | M27 | 20-31 | 270 | 460 |
500 | 670 | 620 | M24 | 20-28 | 260 | 450 | 715 | 650 | M30 | 20-34 | 280 | 490 |
600 | 780 | 725 | M27 | 20-31 | 260 | 460 | 840 | 770 | M33 | 20-37 | 300 | 520 |
700 | 895 | 840 | M27 | 24-31 | 260 | 460 | 910 | 840 | M33 | 24-37 | 300 | 520 |
800 | 1015 | 950 | M30 | 24-34 | 290 | 500 | 1025 | 950 | M36 | 24-40 | 320 | 550 |
Tips:The above data is only part of the data, if you need a special size, please contact us.

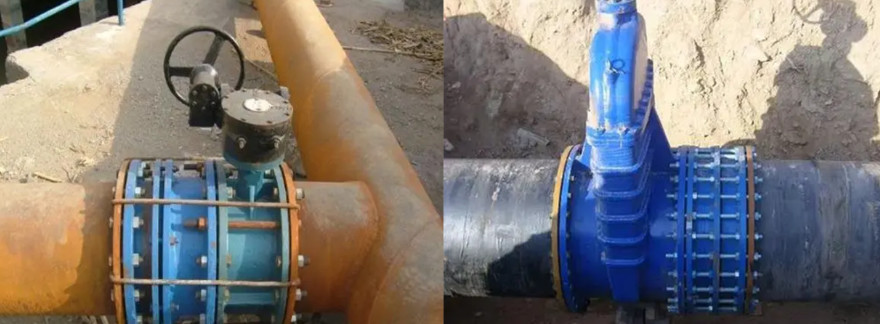

Product Applications
1. Pumps, valves, pipelines and other equipment are connected to
pipelines: Through full bolt connection, it is convenient for installation
and maintenance, and at the same time bears the axial pressure of
the pipeline, which plays a certain role in protecting the pipeline
equipment.
2. Chemical and machinery industry: Due to the complex working environment, the detachable joint can
adapt to the high temperature, high pressure, and corrosive medium
environment.
Product recommendations
Bellow expansion joint PTFE lined hose Iron single band Sleeve compensator
repair clamp
Inventory display
Workshop display
![]() |
