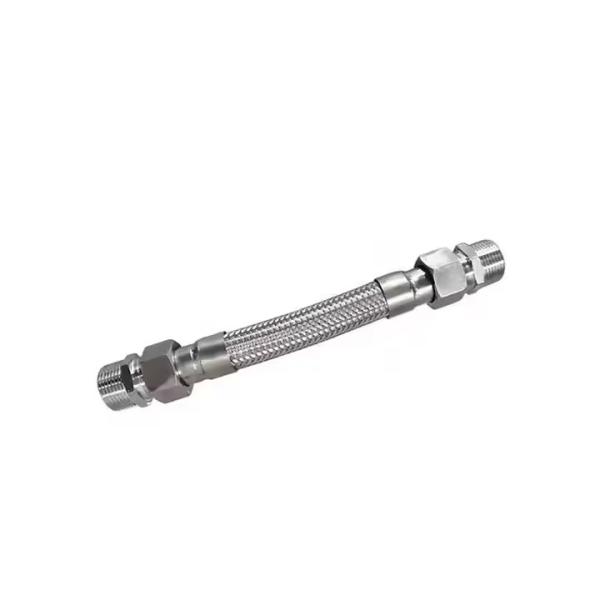

DN50 high quality threaded metal 316 hose type stainless steel
fittings
Product introduction of thread-linked metal hose
Threaded metal hose is a flexible metal hose that is installed and connected by
threaded connections and is widely used in many fields. The core
material is usually made of stainless steel or galvanized steel,
and the exterior is reinforced as required, such as the addition of
stainless steel woven mesh. This hose design allows for bending,
telescoping, and movement in a confined space, while ensuring
tightness and stability in the piping system.
Structure and characteristics of thread-linked metal hose
1. Bellows body: Usually made of stainless steel or galvanized steel, with good
flexibility and elasticity, able to withstand high pressure and
high temperature.
2. Joint part: Threaded connection, common thread types are NPT, BSP, G thread,
etc., suitable for different regions and industries.
3. Braid: Enhance the pressure resistance of the hose and prevent damage
from external force.
4. Sealing gasket: Make sure that there is no leakage at the connection.
Features of thread-type metal hoses
1. The metal hose is made of 1Cr18Ni9Ti stainless steel material as
a whole, which has strong corrosion resistance.
2. The hose body is a thin-walled stainless steel pipe body
hydroformed, which has strong flexibility, elasticity, strong
bending and vibration resistance, and the reinforced protection of
the woven mesh sleeve makes it have a higher pressure-bearing
capacity.
3. The connection at both ends of the hose can also be made into
other connection methods except for thread and flange standards,
which is convenient for connection and use.
4. The product is not only suitable for matching with rotary
joints, but also widely used for flexible connections for the
transportation of various fluid media.
Product parameters
| Name of product | DN50 high quality threaded metal 316 hose type stainless steel
fittings |
| Size | DN15-DN65 |
| Standard of flange | DIN, BS, ANSI, JIS,ISO,etc. |
| Connection | screw type |
| Application | Petrochemical, pharmaceutical, construction engineering,
agricultural field, etc. |
| DN | Length | Axial compression | Axial extension | Horizontal displacement | Deflection angle |
| 15 | 280 | 10 | 5 | 20 | 450 |
| 20 | 280 | 10 | 5 | 20 | 450 |
| 25 | 280 | 10 | 5 | 20 | 450 |
| 32 | 280 | 10 | 5 | 20 | 450 |
| 40 | 300 | 10 | 5 | 20 | 450 |
| 50 | 300 | 10 | 5 | 20 | 450 |
| 65 | 300 | 10 | 5 | 20 | 450 |
Specifications and performance parameters of threaded metal hoses
1. Caliber: From DN8 to DN100, the specific selection should be based on the
fluid flow and pressure requirements of the pipeline system.
2. Length: According to the needs of the project, the length can be
customized, ranging from tens of centimeters to several meters.
3. Pressure capacity: From PN1.0 to PN10.0, which determines the maximum working
pressure that the hose can withstand.
4. Temperature range: The operating temperature range is usually between -196°C and
+450°C, which is suitable for different industrial scenarios.
Application areas of threaded metal hoses
1. Oil and gas industry: Used in oil and gas transportation systems, withstand high
temperature, high pressure and corrosive media transportation.
2. Chemical and pharmaceutical industry: Suitable for corrosive chemicals and conveying systems in the
pharmaceutical industry.
3. Building and water supply system: Used for water supply, heating, air conditioning and other systems
of buildings, adapting to thermal expansion, cold contraction and
settlement.
4. Food and pharmaceutical industry: Meet the needs of high temperature sterilization and maintain high
hygiene standards.
5. Mechanical equipment: It is used for flexible connection of mechanical equipment to
avoid pipeline wear or fracture caused by equipment vibration.
Inventory display
Factory display
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that
will be most satisfy you.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can
design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers to visit our company. Our company is
located in Zhengzhou City, Henan Province, China.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Bahrain, Australia,
Malaysia, Norway, Finland, Peru, Chile, Brazil, Uruguay, Russia,
UAE, Saudi Arabia, Oman, Egypt, Serbia, Vietnam, South Korea,
Indonisia, India, Thailand, Pakistan, Philippines, Singapore etc.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we
will send our catalog.
