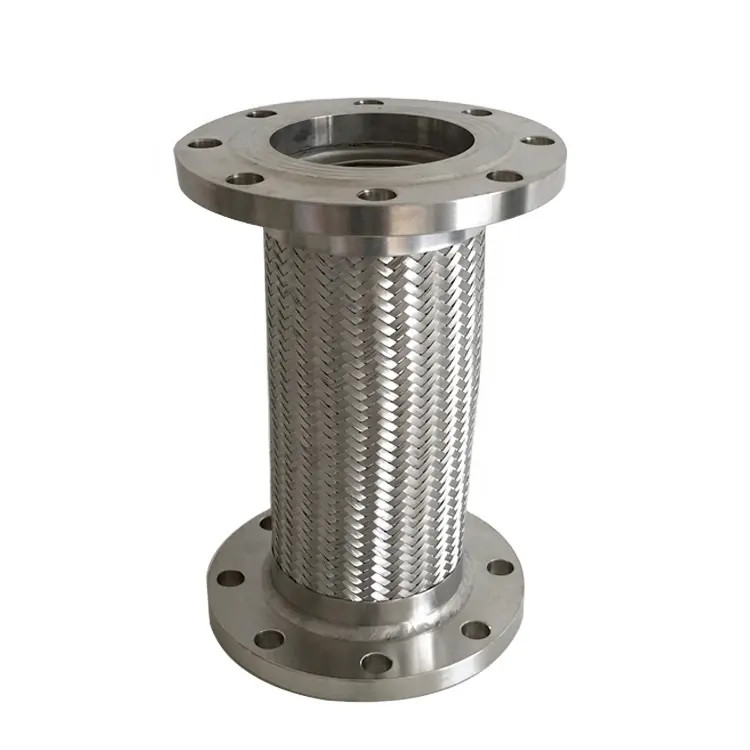

High temperature resistant stainless steel flange metal braided
hose fittings
Product Introduction
The flanged metal hose is generally composed of four parts such as corrugated pipe,
flange, stainless steel braided mesh, and flanging, which has
outstanding flexibility, corrosion resistance, high temperature
resistance, wear resistance, tensile resistance, waterproofness and
excellent electromagnetic shielding performance.
Product Advantages
1. Flanged metal hose is mainly made of stainless steel, with high
corrosion resistance.
2. Flanged metal hose has a wide operating temperature range, from
-196°C to 600°C. It has good resistance to high and low
temperatures.
3. The flanged metal hose body is hydroformed, which has the
characteristics of good flexibility,strong bending and seismic
resistance, bending resistance, tensile resistance, and side
pressure resistance.
4. Flanged metal hose has good wear resistance, which can prevent
rat bites and protect the internal wires from damage.
5. There are many pipe fittings of flanged metal hose, which is
easy to connect with other equipment. In addition to threads and
flanges, the two ends of the hose can also be made into other
connection methods, which is convenient for connection and use with
other equipment.
6. Flanged metal hose is easy to thread, install and position, not
only suitable for matching with rotary joints, but also widely used
for flexible connection of multi-fluid medium transportation.
Product parameters
Product Name | High temperature resistant stainless steel flange metal braided
hose fittings |
Working pressure | 1.6/2.5Mpa |
Nominal diameter | DN8-DN400 |
Installation length | Support Customization |
Applicable media | Water,hot water,steam,oil,air |
Production drawing | Offer |
Working temperature | -10℃ — 300℃ |
Nominal diameter DN
| Inner diameter | Outer diameter | Minimum bending radius | Working pressure |
| Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh |
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |

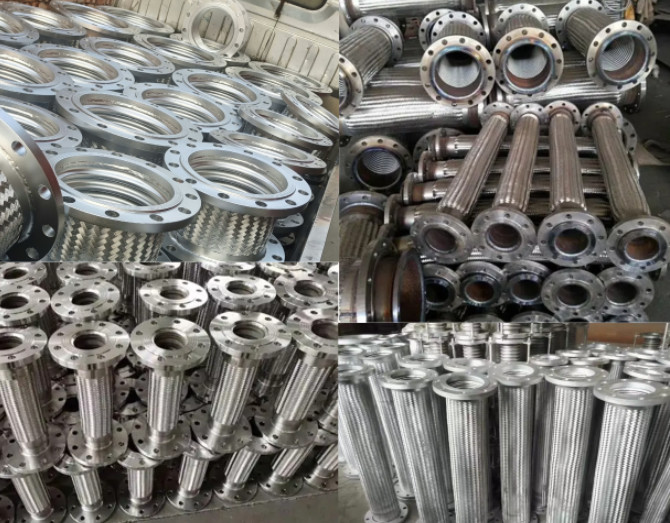

The product is displayed from different angles
Product Types of Metal Flexible Hose
Flange Metal Hose( Movable flange ) Flange Metal Hose( Fixed flange )
PTFE Lined Metal Hose Threaded Metal Hose
Product installation requirements
When installing the Q235 flanged metal hose, the first thing to
ensure is the flatness and tightness of the flange to avoid leakage
caused by poor sealing. During the installation process, special
tools are required to evenly force the bolts to ensure that each
bolt is tightened consistently. The bend radius of the hose also
needs to comply with the specification, as excessive bending can
lead to stress concentrations inside the hose, which can shorten
its service life.
Daily inspection and maintenance of products
Daily inspection and maintenance is an important part of ensuring
the normal operation of Q235 flanged metal hoses. Regularly check
the surface of the hose for wear, cracks, deformation, etc., and
replace it in time once an abnormality is found. The sealing
performance of the flange connection should be checked regularly to
ensure that there are no leaks. During use, avoid the hose from
external impact, especially in high-temperature, high-pressure
working environments, any small damage can lead to serious
consequences.
Inventory display
FAQ
Q: Can the logo on the metal hose be customized?
A: Yes, it can be marked with your company's logo. We can provide
OEM and ODM services.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be
returned or according to consumer's requests.
Q: What is your packing method?
A: It is wrapped in plastic film first, then packed into a carton,
and then packed into a wooden box, which can also be made according
to customer requirements.
Q: What are the components of a metal hose?
A: It is composed of three parts: bellows, mesh sleeve and flange.
Q: Can metal hoses of different diameters and sizes be customized?
A: Yes, the above is the standard size, we can make it according to
customer requirements.
Q: What are the materials of metal hoses?
A: There are carbon steel, stainless steel, etc.
