Multifunctional all stainless steel HDPE pipe fitting straight pipe
leakage repair clamp
Product Introduction
The metal part of the pipe connector and pipe joint repair is made
of stainless steel 304, and the built-in sealing ring is specially
designed and processed, which can automatically enhance the sealing
effect with the increase of external pressure. Due to the
multifunctional pipe connector, pipe repair device shell and the
internal sealing ring itself has elasticity, so for PE pipe and
other plastic pipe fittings with the sex, there is no thermal
expansion and contraction phenomenon occurs. There will not be
steel pipe afraid of screwing the deformation phenomenon.
Product Advantages
1. Material: The shell is made of 304 stainless steel, the sealing ring is EPDM
rubber, and the fasteners are also made of 304 stainless steel.
2. Sealing effect: The built-in sealing rubber ring automatically enhances the
sealing effect with the increase of external pressure, applicable
to PE pipe and other plastic pipe fittings, there will be no
thermal expansion and contraction phenomenon.
3. Scope of application: Suitable for large aperture pipe, for small diameter pipe cost is
higher. It can be quickly repaired without stopping the pressure or
changing the pipes, convenient installation and high construction
efficiency, and no special tools are needed for the construction.
Product Parameters
| NO | NAME | MATERIAL | QUANTITIES |
| 1 | Guard board | SS304 | 1 |
| 2 | Nut tie rod | SS304 | 1 |
| 3 | Screw hole pull rod | SS304 | 1 |
| 4 | rubber sleeve | EPDM | 1 |
| 5 | Shell steel plate | SS304 | 1 |
| 6 | Bolt | SS304 | N |

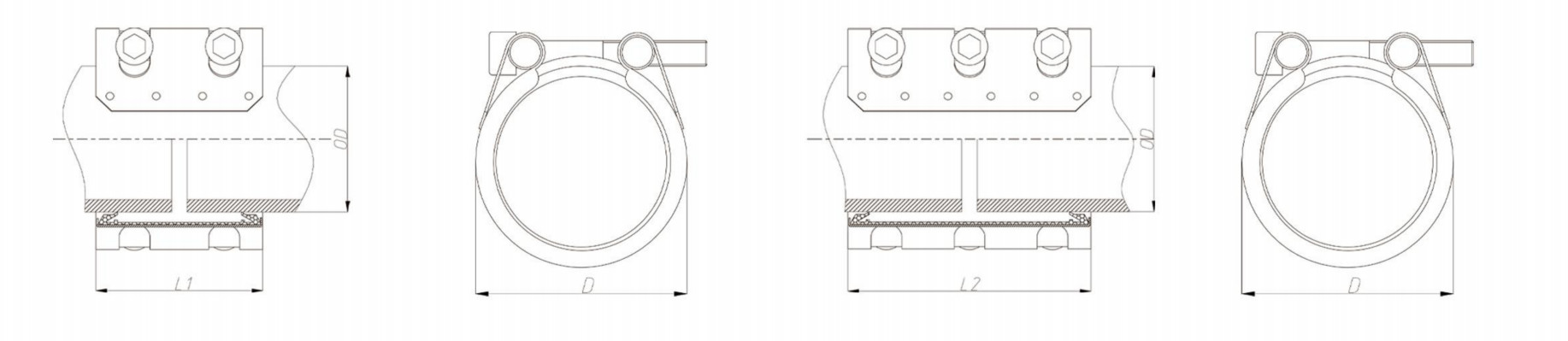

| Pipe OD (mm) | Pipe Diameter Range(mm) | Pressure | Dimensions | Bolt | Bolt torque |
| L1(mm) | D(mm) |
| 21.7 | 21-23 | 16 | 57 | 35 | 6 | 15 |
| 25 | 24.5-25.5 | 16 | 57 | 50 | 6 | 15 |
| 27.2 | 26-28 | 16 | 57 | 50 | 6 | 15 |
| 32 | 31.5-32.5 | 16 | 57 | 55 | 6 | 15 |
| 34 | 33-35 | 16 | 57 | 55 | 6 | 15 |
| 40 | 39.4-41.5 | 16 | 57 | 55 | 6 | 15 |
| 42 | 42-44 | 16 | 57 | 65 | 6 | 15 |
| 44.5 | 44-45.1 | 16 | 57 | 65 | 6 | 15 |
| 48.6 | 47-49 | 16 | 57 | 70 | 6 | 15 |
| 54 | 53.3-54.6 | 16 | 57 | 70 | 8 | 30 |
| 57 | 56.3-57.7 | 16 | 57 | 80 | 8 | 30 |
| 60.3 | 59-62 | 16 | 80 | 85 | 8 | 30 |
| 63 | 62.2-63.9 | 16 | 80 | 85 | 8 | 30 |
| 76.1 | 75-78 | 16 | 80 | 100 | 8 | 30 |
| 79.9 | 78.8-80.8 | 16 | 80 | 100 | 8 | 30 |
| 88.9 | 88-92 | 16 | 107 | 110 | 10 | 50 |
| 108 | 106-110 | 16 | 107 | 130 | 10 | 50 |
| 110 | 108.9-111.2 | 16 | 107 | 130 | 10 | 50 |
| 114.3 | 112-116 | 16 | 107 | 135 | 10 | 50 |
| 118 | 116.6-119.2 | 16 | 107 | 140 | 10 | 50 |
| 125 | 123.6-126.5 | 16 | 107 | 150 | 10 | 50 |
| 133 | 131.5-134.4 | 16 | 107 | 160 | 10 | 50 |
Tips:The above data is only part of the data, if you need a special
size, please contact us.
Product Application Scenarios
FCD repair is suitable for various pipeline projects, including ships, power
plants, oil transmission, gas transmission, water supply and
drainage and sewage treatment. It is also widely used in oilfield
oil extraction plants, gas, water supply and drainage pipeline
emergency repair operations and other fields.
Special product customization process
1.Provide drawings
2.Customer confirmation
3.Quotation including freight
4.Provide PI
5.Received payment, arrange shipment
Product installation process
Product Composition
