SS304/316 Stainless Steel Fitting Emergency Quick Straight Tubing Leak Joint Repair Clip

The material and specifications of the product

Semi circle mini type repair clamp are available in a variety of materials, including plastic ABS, aluminum alloy, stainless steel, carbon steel, and more. The choice of these materials can be determined according to the specific use environment and needs. For example, stainless steel patches are suitable for environments that require corrosion resistance and high strength, while plastic ABS is suitable for some light-duty and low-pressure applications.

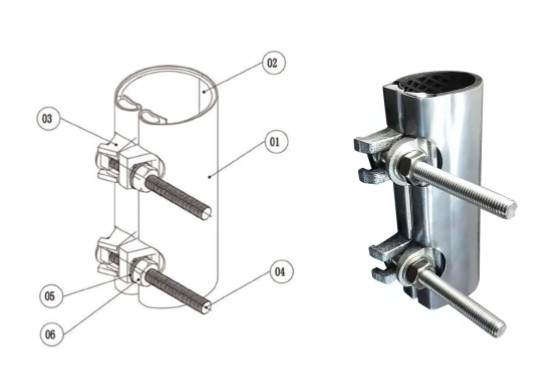

Product structure composition

1. Pipe clamp body: This is the main part of the pipe clamp, which is usually made of stainless steel, which has enough strength and corrosion resistance to withstand the pressure inside the pipe.
2. Fixing screw: Used to fix the pipe clamp on the pipe, usually need to be used with a nut to ensure that the pipe clamp is firmly fixed on the pipe.
3. Sealing gasket: located between the pipe clamp and the pipe, it plays a sealing role and prevents leakage. Gaskets are typically made of rubber or other elastomeric materials that are able to accommodate small vibrations and displacements of pipes.
4. Adjustment mechanism: Some pipe clamps are designed with adjustment mechanisms, which allow users to adjust according to the specific conditions of the pipeline to ensure that the pipe clamp can fit the pipeline tightly.

Product parameters

Product Advantages

1. Scope of application: It is suitable for the repair of new pipeline connections and old pipelines, and the connection patcher can be disassembled quickly and can be reused.
2. Installation operation: Fast installation, simple method, no special tools, no professional and technical team.
3. Sealing performance: Prevent external corrosion and internal chemical medium corrosion.
4. Lightweight: Space-saving, easy to install, can also be installed in narrow spaces.
5. Pressure resistance: Allowable two pipes axial deviation angle of 10°, two pipes with different diameters are connected, the allowable diameter difference is 4mm, and pipes of different materials can be connected.
6. Withstand pressure range: When the internal pressure of the pipeline is higher or lower than the atmospheric pressure, the performance of the link patcher remains unchanged.

Product application scenarios

Semi circle mini type repair clamp are widely used in a variety of piping systems, especially when carrying out emergency repairs without water interruption. Due to its small size, light weight and easy operation, it is very practical in maintenance and emergency repair work.

Different types of patches

Stainless steel Connectors Semi circle mini Iron single band

plate patches type repair clamp repair clamp

Inventory display

Product Details

The company adheres to the business philosophy of "customer satisfaction is our first duty, all employees are responsible for creating quality, continuous improvement sets new heights, honest service builds reputation", and wholeheartedly provides high-quality products and professional services to new and old customers.

The factory mainly produces rubber expansion joints, duckbill check valves, dismantling joint, bellow expansion joints, compensators, repair clamp, 02S404 national standard waterproof casings, gate valves ,butterfly valves etc; and all products have passed ISO 9001:2015 quality management system certification; adopting national and industry standards, advanced manufacturing technology, strong R&D and manufacturing capabilities, they are widely used in water supply, drainage, electricity, chemical industry, gas, metallurgy, urban construction and environmental protection and other pipeline industries.
