Product structure composition

1. Telescopic seat: This is the main component of the flange compensation joint, which allows the pipe to expand and contract within a certain range to adapt to temperature changes or the expansion and contraction of the pipe.
2. Sealing ring: The sealing parts are used to prevent leakage and ensure the tightness of the pipeline connection. The seals can be adjusted as needed to suit different working conditions.
3. Telescopic tube: The telescopic tube allows the pipeline to move in the axial direction to compensate for the thermal expansion and contraction of the pipeline and the subsidence of the foundation.
4. Bolt: The flange compensation joint is connected with the pipeline through bolts to form a whole, transmit axial thrust, and ensure the stability of the connection.
5. Guide bracket: Installed at both ends of the telescopic device to keep the pipeline moving on the same axis and prevent the pipeline from deviating.

Product Advantages

1. Small size and light weight: The wide range flange compensation joint is designed to be compact, which is easy to install and maintain.
2. Good elasticity: It can expand and contract freely when the temperature changes, ensuring the safe operation of the pipeline.
3. Easy installation and maintenance: Transverse, axial and angular displacement can be generated during installation, which is not limited by the non-concentricity of the pipeline or the non-parallel flange, which reduces the noise of structural transmission and has strong vibration absorption ability.

Product parameters

Tips:The above data is only part of the data, if you need a special size, please contact us.

Product Applications

A wide range of compensation joints are widely used in automobiles, agricultural machinery, industrial equipment and other fields. For example, in automobiles, wide-range compensating joints are used to transfer power to the wheels from the rotational motion of the engine. In agricultural machinery, wide-range compensating joints transmit the movement of the motor to the various components of the agricultural machinery. In industrial equipment, a wide range of compensation joints can connect two devices and compensate for the displacement of the equipment to ensure the normal operation of the equipment.

Why choose us?

1. Production machinery and equipment: more than 200 sets
2. Product diversification: more than 1000 product models
3. Strict quality control system reached ISO9001:2015. Regular stress testing, with third-party testing if required.
4. Customer service: 24-hour online service for your consultation
5. Product price: give you the best price and discount
6. Delivery time: on-time production, delivery, and timely notification to you
7.1 year product warranty and installation technical support
8. Exported to nearly 35 countries, providing experienced and professional services to overseas customers
9. Product customization/packaging customization/pattern and logo customization
10. Accept small quantity orders/OEM orders

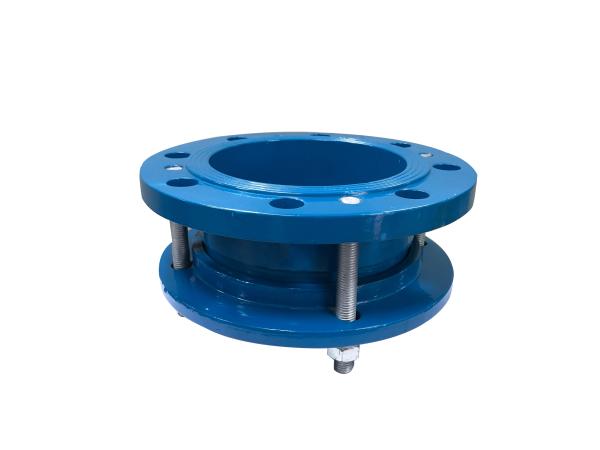

The product is displayed from different angles

Workshop display

Inventory display

The company adheres to the business philosophy of "customer satisfaction is our first duty, all employees are responsible for creating quality, continuous improvement sets new heights, honest service builds reputation", and wholeheartedly provides high-quality products and professional services to new and old customers.

The factory mainly produces rubber expansion joints, duckbill check valves, dismantling joint, bellow expansion joints, compensators, repair clamp, 02S404 national standard waterproof casings, gate valves ,butterfly valves etc; and all products have passed ISO 9001:2015 quality management system certification; adopting national and industry standards, advanced manufacturing technology, strong R&D and manufacturing capabilities, they are widely used in water supply, drainage, electricity, chemical industry, gas, metallurgy, urban construction and environmental protection and other pipeline industries.
