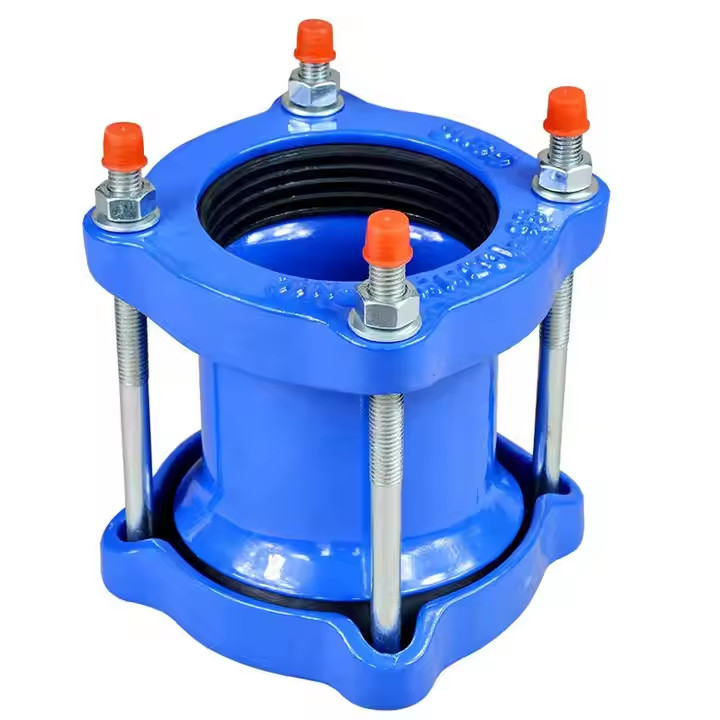

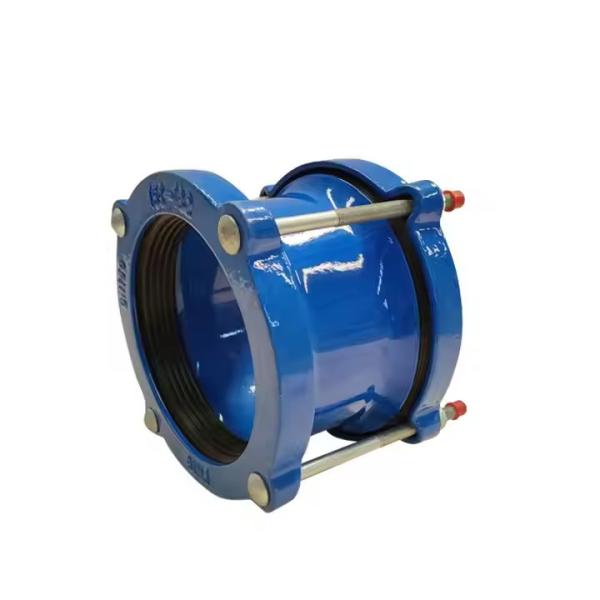

pvc gibault joint ductile iron pipe universal flexible dresser couplings

Product Structure Composition

1. Gland: Gland is an important part of wide range flexible compensating joint, used to fix and protect the internal components of the compensator, preventing them from being affected by external pressure and temperature changes.
2. Loose Sleeve: The loose sleeve structure enables the compensator to expand and contract freely within a certain range, so as to adapt to the thermal expansion and contraction of the pipeline and displacement changes, and ensure the stable operation of the pipeline system.
3. Sealing ring: The sealing ring is located between the gland and the loose sleeve, playing a sealing role, preventing media leakage and ensuring the sealing performance of the compensator.
4. Flange: The flange is the part connecting the compensator and the pipeline, and usually adopts metal flange, which has high strength and corrosion resistance, and is easy to install and maintain.

Product Characteristics

1. Wide range of applicable pipe diameters .
2. Corrosion-resistant structure.
3. Total angle deviation of 4°.
4. WRAS approved.

Product Parameters

Tips:The above data is only part of the data, if you need a special size, please contact us.

Product Installation Steps

1. Preparation: Before installation, you need to prepare the appropriate tools and materials, and check whether the compensation joint is intact, without obvious defects or damage.
2. Connecting pipes: According to the actual need, connect the compensation joint to the pipe, make sure the connection is firm and well sealed. For welded connections, ensure that the welding quality complies with relevant standards and codes.
3. Adjust the limit block: According to the actual need, adjust the position of the limit block to realize the required compensation amount. At the same time, it should be ensured that the limit block is firmly fixed and will not be loose or shifted.
4. Fix the pipe: Fix the pipe connected with the compensation joint on the corresponding bracket or foundation to ensure that the pipe is stable and does not shake. At the same time, it should be ensured that the bracket or foundation is firm enough to withstand the weight of the pipeline and the dynamic load during work.
5. Inspection and installation: After the installation is completed, the installation of the compensation joint should be comprehensively inspected to ensure that it is in good working condition and has no leakage, etc. At the same time, it should be inspected for any problems that occur during the installation. At the same time, problems arising during the installation should be dealt with and repaired in time.

Our service

1.Standard grinding tool with high precision: Each product has a standard grinding tool, the grinding tool adopts numerical control system, high precision
2.Pressure test: Pressure test for each fitting before leaving the factory
3.Very easy to install and dismantle: We provide professional installation instruction
4.Prompt reply: You will receive our reply within 180 seconds during normal working hours in China.

Hot Products

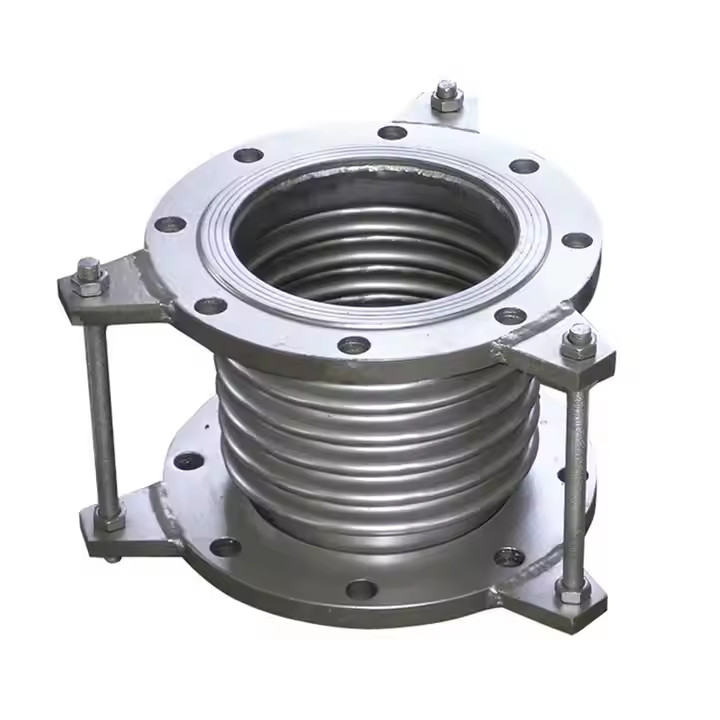

Double Sphere Food Grade Flexible Metal Bellow Expansion Joint

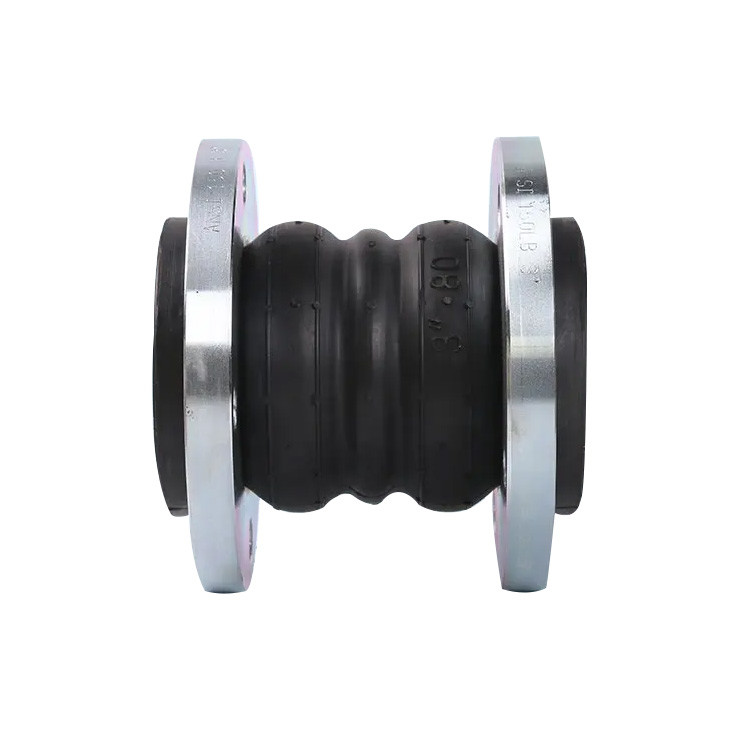

Rubber Joint Rubber Joint Braided Hose

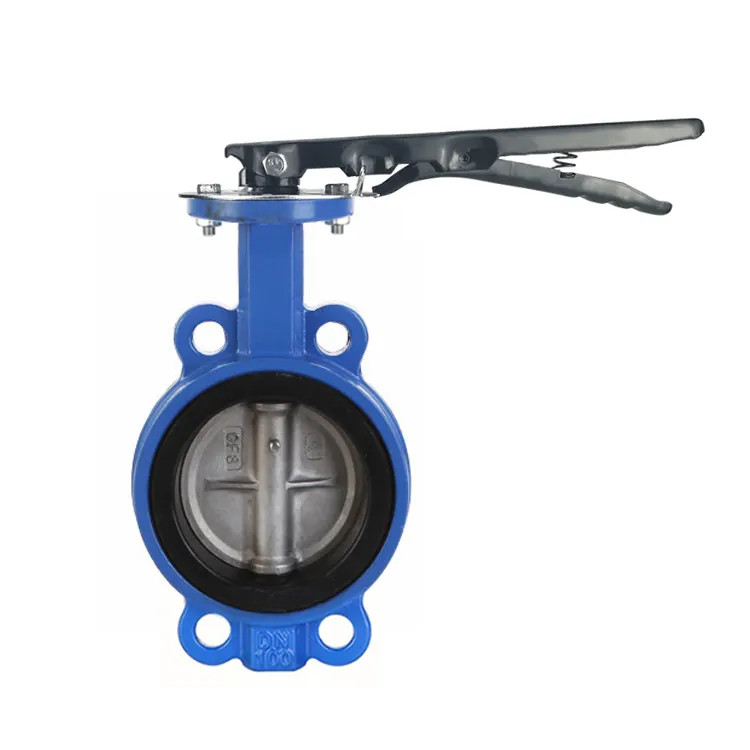

D Type large Deflection Sleeve Compensator Butterfly Valve Gibault Joint

Compensating Joint

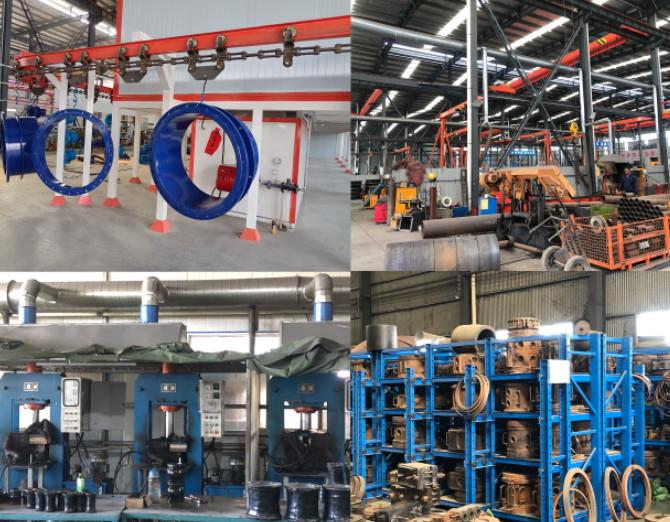

Workshop display
