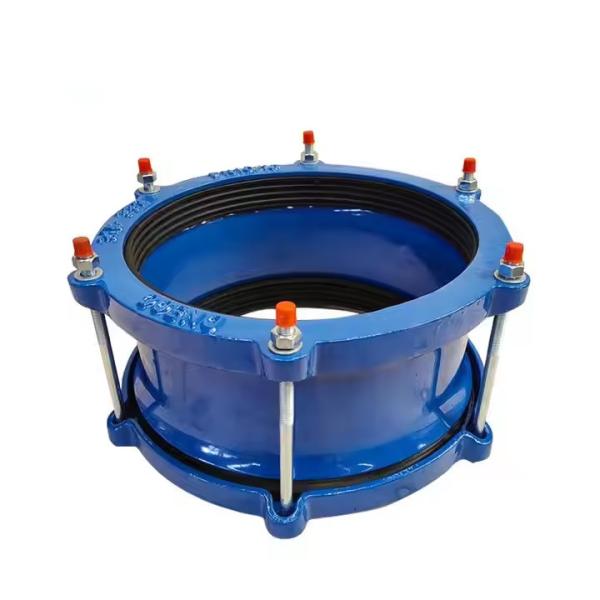

Multi Model Ductile Iron Orthopedic Pipe Universal Joints PVC/PE Pipe High Quality Gibault Joints

Product features

1. Wide range of compensation: A wide range of flexible compensation joints can compensate for large motion offsets, and are suitable for displacement compensation in various mechanical equipment and pipeline systems.
2. High transmission torque: Its connection point has a certain contact area, which can transmit high torque and ensure the normal operation of the equipment.
3. High transmission accuracy: Advanced structure and high transmission accuracy, which can ensure the normal operation of the transmission system.
4. Simple maintenance: Simple structure, generally no special maintenance, can reduce the maintenance cost of equipment.
5. Wide range of application: Suitable for all kinds of mechanical equipment and pipeline systems, such as automobiles, agricultural machinery, industrial equipment, etc.
6. Strong corrosion resistance: Some models are made of stainless steel, which has good anti-corrosion performance.
7. Strong temperature adaptability: Able to work normally within a certain temperature range, such as the maximum temperature can reach 70 degrees Celsius.

Design features
1. Large tolerances
2. Universal drilling is compatible with PN10 and PN16
3. The end of the bolt is protected with a plastic cap

Technical features
1. Flange end connection conforms to EN1092-2: PN10/PN16, class 150
2. Maximum working pressure: PN16/16bar
3. Working temperature: 0°C ~ 70°C
4. Powder epoxy coating thickness 250 μm
5. Bolts, joints and washers – carbon steel 4.8/8.8 hot-dip galvanized
6. Maximum angular deflection - 4 °

Product parameters

Product Applications

1. Automobile: Used to transmit power and transmit the rotational motion of the engine to the wheels.
2. Agricultural machinery: Transmit the movement of the motor to the various parts of the agricultural machinery.
3. Industrial equipment: Connect two devices and compensate for the displacement offset of the equipment to ensure the normal operation of the equipment.
4. Industrial robots and automation equipment: Widely used in the environment of high-precision transmission to improve production efficiency and quality.

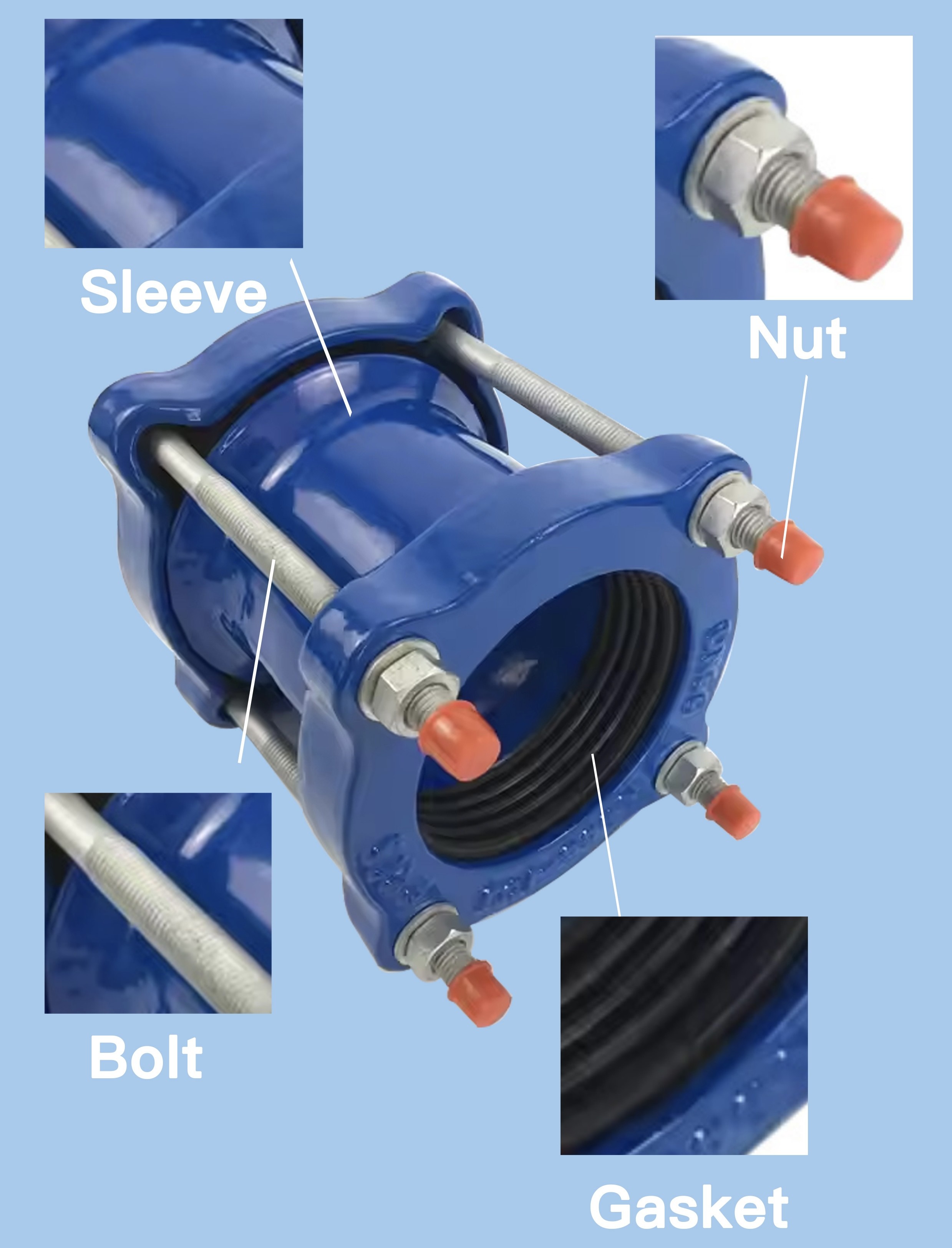

Product Composition

The company adheres to the business philosophy of "customer satisfaction is our first duty, all employees are responsible for creating quality, continuous improvement sets new heights, honest service builds reputation", and wholeheartedly provides high-quality products and professional services to new and old customers.

The factory mainly produces rubber expansion joints, duckbill check valves, dismantling joint, bellow expansion joints, compensators, repair clamp, 02S404 national standard waterproof casings, gate valves ,butterfly valves etc; and all products have passed ISO 9001:2015 quality management system certification; adopting national and industry standards, advanced manufacturing technology, strong R&D and manufacturing capabilities, they are widely used in water supply, drainage, electricity, chemical industry, gas, metallurgy, urban construction and environmental protection and other pipeline industries.
