Brand Name : | Lianghe |
Model Number : | REJ |
Certification : | ISO9001 |
Price : | $12-23 set |
Payment Terms : | T/T, D/A, D/P, Western Union, L/C, MoneyGram |
Supply Ability : | 10000 sets per week |
Delivery Time : | 5--12 working days |
DIN Manufacturers Waterproof Connector Flexible Compensator SS304 Flange Double Sphere Rubber Expansion Joint
1.Rubber expansion joint is also called rubber joint,flexible rubber joint,flexible joint,shock absorber,pipe shock absorber,shock proof throat,etc.
2.The double-sphere rubber joint is composed of inner and outer layer,multi-layer nylon cord
fabric,flange and pressure balance ring.
According to the media used in different rubber materials are also different,there are natural rubber,styrene-butadiene rubber,butyl rubber,nitrile rubber,EPDM,chloroprene rubber,silicone rubber,fluororubbera and so on.They are heat-resistant,acid resistant,alkali resistant,corrosion resistant,wear resistant and oil resistant.
Technical data of Double Sphere Rubber Expansion Joint
Nominal diameter (DN) | Length | Axial displacement (mm) | Horizontal displacement | Deflexion angle | ||
mm | inch | mm | Extension | Compression | mm | (a1+a2)° |
40 | 1 1/2 | 165 | 30 | 50 | 45 | 35 |
50 | 2 | 165 | 30 | 50 | 45 | 35 |
65 | 2 1/2 | 175 | 30 | 50 | 45 | 35 |
80 | 3 | 175 | 35 | 50 | 45 | 35 |
100 | 4 | 225 | 35 | 50 | 40 | 35 |
125 | 5 | 225 | 35 | 50 | 40 | 35 |
150 | 6 | 225 | 35 | 50 | 40 | 35 |
200 | 8 | 325 | 35 | 50 | 40 | 35 |
250 | 10 | 325 | 35 | 60 | 35 | 30 |
300 | 12 | 325 | 35 | 60 | 35 | 30 |
350 | 14 | 350 | 35 | 60 | 35 | 30 |
400 | 16 | 350 | 35 | 60 | 35 | 30 |
450 | 18 | 350 | 35 | 60 | 35 | 30 |
500 | 20 | 350 | 35 | 60 | 35 | 30 |
600 | 24 | 400 | 35 | 60 | 35 | 30 |
The data above is only for reference, pls contact us for exact data and price.
Related Products

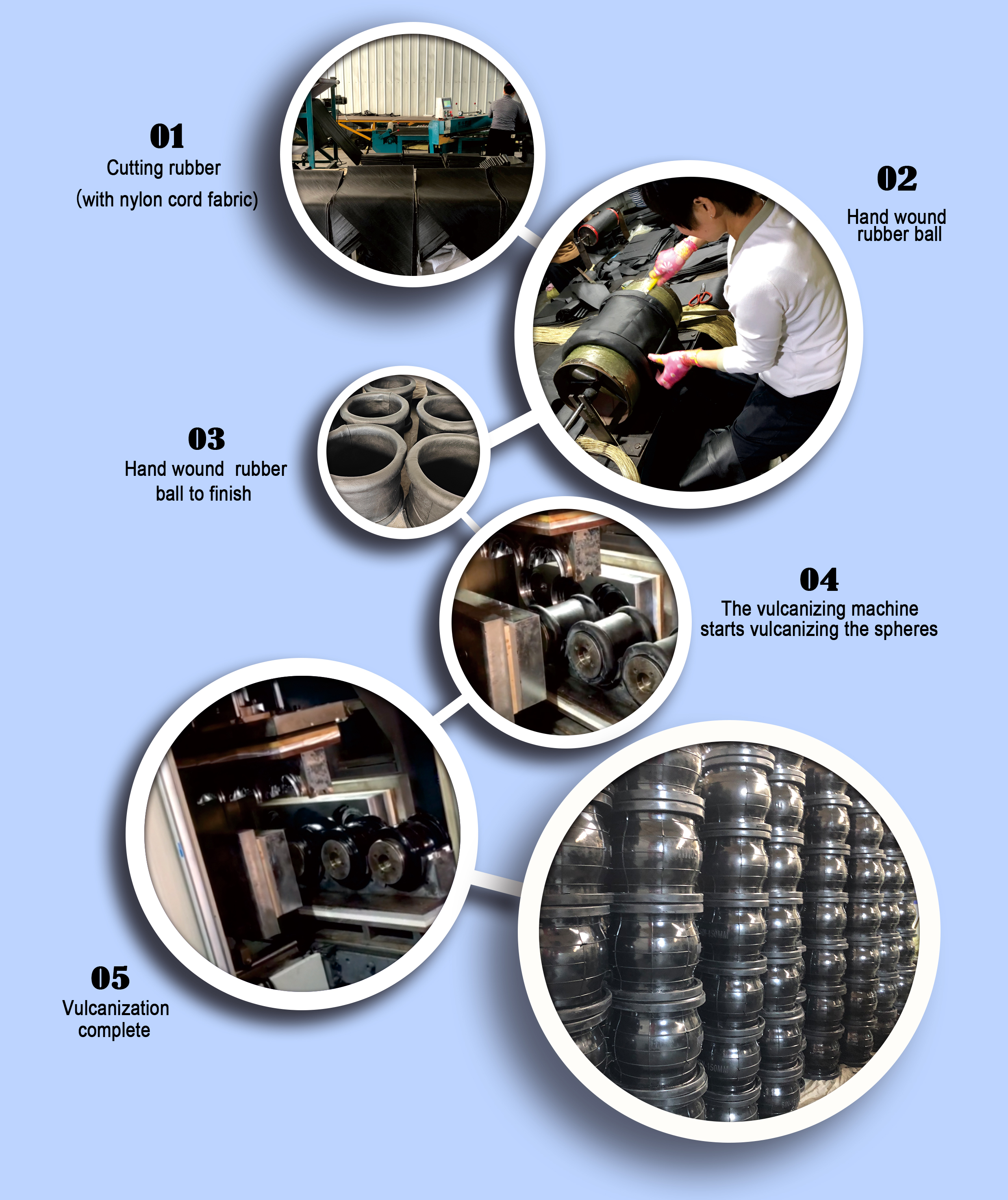

Production Process
Why choose our products ?
1.24 hours online service-- anytime,anywhere can provide what you
want.
2.100% quality inspection before shipping.
3.Reasonable and competitive price.
4.Strong production capability,strict quality control,offer
satisfying service.
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (30% as deposit, the rest 70% will be paid before delivery),
L/C at sight.
Q: Where is your nearest loadingport?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be
returned or according to consumer's requests.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to
your order quantity.
![]() |
