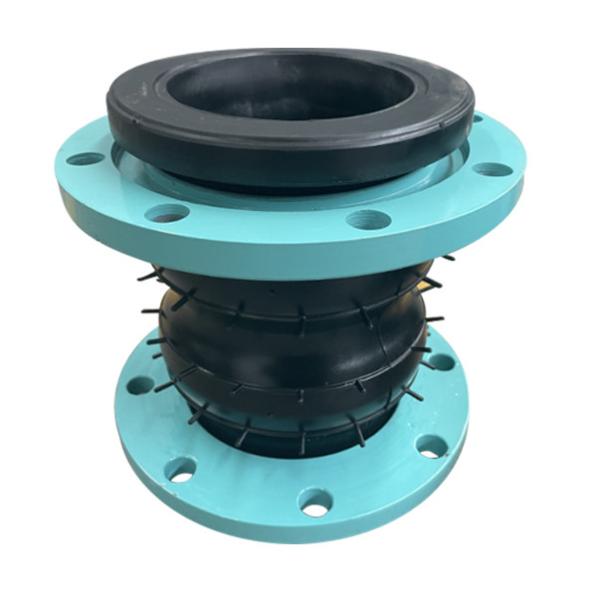

Jis 10k Carbon Steel Flange Bellow Twin Sphere Rubber Flexible Joint

Double sphere rubber bellows coupling is generally consist of the inner and the outer rubber layer and fabric reinforced layer (the enhancement layer has a multilayer spreading cord fabric), vulcanization molded in high temperature and high pressure , then assembly together with rubber tube and metal flange or parallel joint sleeve.

Classification of double ball rubber joints: buckle groove rubber joints, flanged rubber joints, negative pressure resistant rubber joints, high pressure resistant rubber joints, anti-pull-off limit rubber joints, etc.

Installation method
The installation bolts of the double ball rubber joint should be tightened symmetrically and gradually to prevent local leakage. Keep away from heat sources during installation. Because the pipe body is tightly combined and deforms less under pressure, the double ball rubber joint has a strong bearing pressure and excellent pulse performance.

Characteristics of double sphere rubber expansion joint

1. Small size, light weight, good elasticity, easy installation and maintenance.
2. Horizontal, vertical and angular displacements can be generated during installation, which is not limited by eccentric and non-parallel flanges of user pipes.
3. Vibration and noise reduction function
4. Strong corrosion resistance and long service life.

Double Ball Connection Data Sheet

Double sphere rubber joint production process

FAQ

Q1: What’s the face to face length?

A1: The face to face length can be L130, L150,L230.. We also could accept customized length according to your requirements.

Q2: Are you trading company or manufacturer?
A2: We are manufacturer of rubber expansion joint, bellow expansion joint,flexible metal hose, dismantling joint, dresser coupling, flange adaptor with more than 20-years experience.

Q3: Can you provide drawings and technical data?
A3: Yes, our professional technical department will design and provide drawings and technical data.

Q4: What are the flange standards?
A4: Flange standards include ANSI 150Lb, DIN PN16, BS4504, JIS 10K, etc.Of course, we can also customize according to the flange data you provide.

The company adheres to the business philosophy of "customer satisfaction is our first duty, all employees are responsible for creating quality, continuous improvement sets new heights, honest service builds reputation", and wholeheartedly provides high-quality products and professional services to new and old customers.

The factory mainly produces rubber expansion joints, duckbill check valves, dismantling joint, bellow expansion joints, compensators, repair clamp, 02S404 national standard waterproof casings, gate valves ,butterfly valves etc; and all products have passed ISO 9001:2015 quality management system certification; adopting national and industry standards, advanced manufacturing technology, strong R&D and manufacturing capabilities, they are widely used in water supply, drainage, electricity, chemical industry, gas, metallurgy, urban construction and environmental protection and other pipeline industries.
