Dn100 Pn16 Chemical Acid Alkali Resistant Carbon Steel Flanged Flexible Epdm Expand Bellow Compens
Product presentation
Single ball rubber joint is mainly used for pipeline to reduce vibration, reduce noise, good scalability, easy to use. Single ball rubber joint is also known as single ball rubber soft joint, single ball soft joint, shock absorber, pipeline shock absorber, shock absorber throat, etc., is a kind of high elasticity, high air tightness, medium resistance and climate resistance of the pipeline joint,
The product uses rubber elasticity, high air tightness, medium resistance, weather resistance and radiation resistance and other points, the use of high strength, hot and cold stability of strong polyester cord fabric oblique after the compound, it is vulcanized by high pressure and high temperature mold.
Characteristic
1, Small size, light weight, good flexibility, easy installation
and maintenance
2, The installation can produce transverse, axial, angular
displacement, not subject to the pipe through the heart, flange
unparallel restrictions
3, The work can reduce the structure transmission noise, strong
vibration absorption ability
4, With high pressure resistance, good elasticity, large
displacement, balance pipeline deviation, vibration absorption,
good noise reduction effect, easy installation, can also greatly
reduce the vibration and noise of the pipeline system, can
fundamentally solve the interface displacement of all kinds of
pipelines, axial expansion and different concentricity and other
problems.
Product parameters
Rubber Expansion Joint | |||
Working pressure(kg f/cm2) | 1.0(10) | 1.6(16) | 2.5(25) |
Explosion pressure(kg f/cm2) | 3.0(30) | 4.8(48) | 5.5(55) |
Applicable Temperature | -20℃-150℃ | ||
Applicable Media | Water (domestic sewage), industrial sewage, petroleum, chemical raw materials, lime mortar, food, beverage, etc |

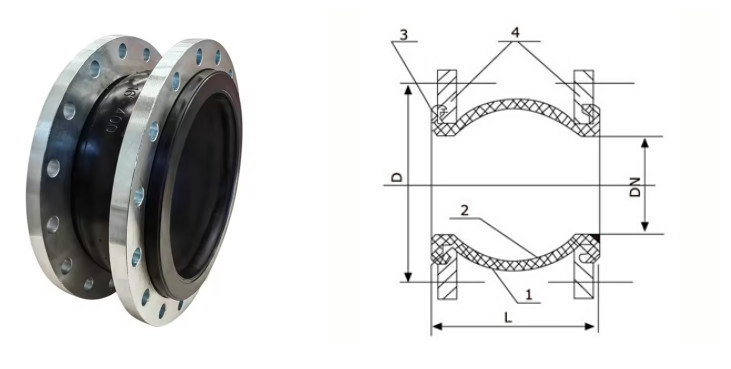

NO | NAME | Material |
1 | Outer/inner rubber | EPDM, NR, NBR |
2 | Frame | Nylon cord |
3 | Pressurized ring | Steel wire or stainless steel |
4 | Flange | SS304,SS316,carbon steel, ductile iron,etc |
Detailed images
FAQ:
Q:How can we guarantee quality?
A:We offer sample before mass production and final inspection before shipping.
Q:Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.
Q:Is quality warranty offered?
A:Yes, our company offer free warranty for 1 years, and support third-party testing.
Q:What else can we buy from you?
A:Rubber Expansion Joint, Metal Expansion Joint, Metal Braided Hose, Bellow Expansion Joint, and so on.
Q:Do you have your own factory? Can we visit it?
A:of course, we'd like to welcome you to our company.
![]() |
