Advantages of double ball rubber joints
1. Compensate for displacement: Double ball rubber joints can compensate for a certain
displacement in the pipeline system to avoid pipeline rupture
caused by temperature changes, earthquakes and other reasons, so as
to protect the stable operation of the pipeline system.
2. Corrosion resistance: The rubber material has good corrosion resistance, which can adapt
to the transportation of various media and ensure the stable
operation of the pipeline system.
3. Easy installation: The installation of the double ball rubber joint is simple and
convenient, only need to connect the flange with the pipe, no need
to use welding or bolt fastening, saving installation time and
cost.
4. Economical: The price of double ball rubber joint is relatively low, the
service life is long, the maintenance cost is low, and it is an
economical and practical pipe connector.
How to install a double ball rubber joint
1. It is strictly forbidden to over-displacement installation: When installing double ball rubber joints, the specified
displacement limit must be observed, and the maximum displacement
range allowed by the design must be avoided to ensure the normal
function and safety of the joint.
2. Symmetrical installation bolts: When installing bolts, you should ensure the alignment of the
bolts and flange holes, and then gradually pressurize and tighten
the bolts to prevent local leakage. Symmetrical mounting bolts
ensure uniform stress on the joint and avoid local pressure
concentrations.
3. Use elastic pressure pads: For applications with working pressure of more than 1.6MPa,
elastic pressure pads should be used on the bolts to prevent the
bolts from loosening during work. Elastomeric pressure pads provide
additional tightening force to ensure the sealing performance of
the joint.
Rubber joint material table
| NO | NAME | Material |
| 1 | Inner and outer rubber layers | NR,NBR,EPDM,etc. |
| 2 | Frame | Nylon cord fabric |
| 3 | Pressurized ring | Steel wire strand |
| 4 | Flange | Ductile iron,carbon steel, Stainless steel |
Job attributes
| Model | KST-1 | KST-2 | KST-3 |
| Working Pressure | 1(10) | 1.6(16) | 2.5(25) |
| Burst Pressure Mpa(kgf/cm2) | 2(20) | 3(30) | 4.5(45) |
| Vacuum Degree Kpa(mmHg) | 53.3(400) | 86.7(650) | 100(750) |
| Suitable Temperature ℃ | -20℃~150℃ |

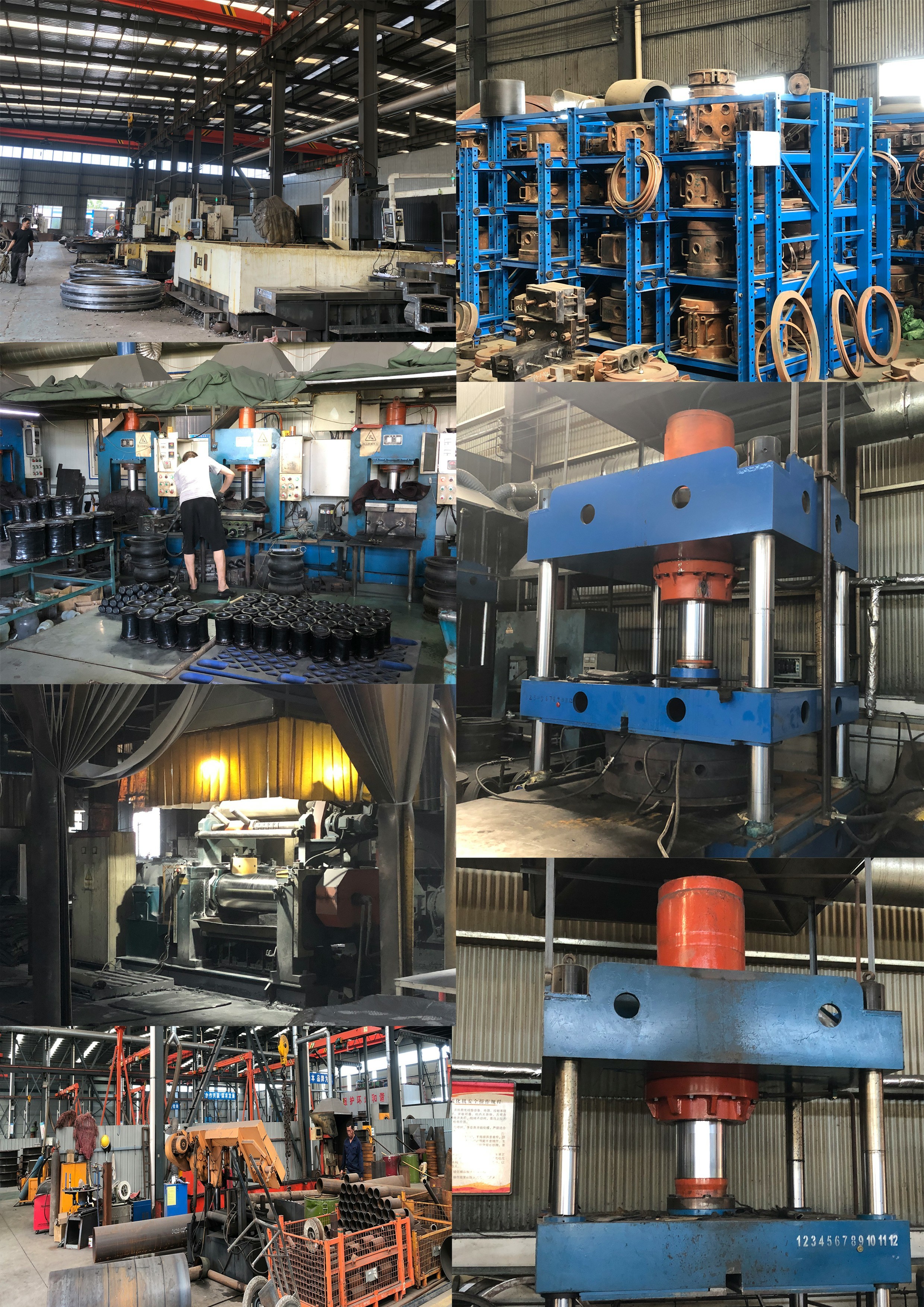

Factory display
