Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron

Henan Lianghe Pipeline Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron from wholesalers

    Buy cheap Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron from wholesalers
    • Buy cheap Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron from wholesalers
    • Buy cheap Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron from wholesalers
    • Buy cheap Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron from wholesalers
    • Buy cheap Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron from wholesalers

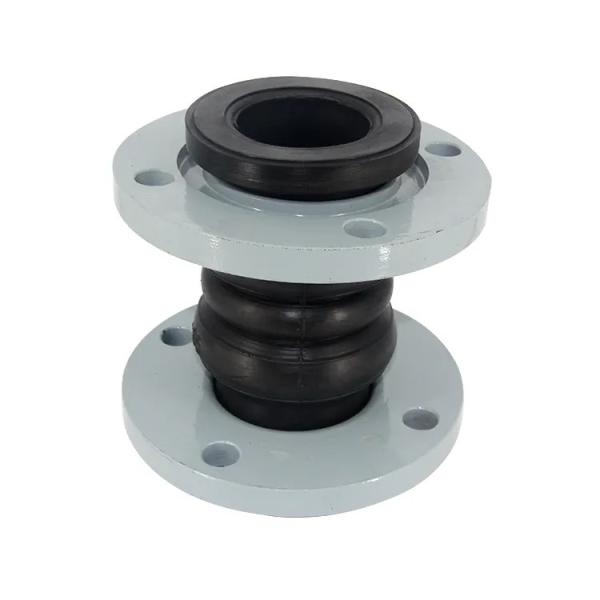

    Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron

    Ask Lasest Price
    Brand Name : Liang He
    Model Number : KST
    Certification : ISO 9001
    Price : $15.2-24.6 per set
    Payment Terms : T/T, D/A, D/P, Western Union, MoneyGram, L/C
    Supply Ability : 8000 piece per month
    Delivery Time : 3-7 day
    • Product Details
    • Company Profile

    Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron

    Product Introduction

    Double ball rubber soft joint, also known as flexible rubber joint, is a kind of soft connection made of rubber material and steel wire rope reinforcement layer. The joint can be used to connect pipes of the same or different materials, with good elasticity, damping and shock absorption, vibration isolation and sound absorption effects, and can effectively deal with the stress caused by temperature, vibration, deformation and other factors in the pipeline.


    This soft fitting has the following features

    1. Good acid and alkali resistance, cold and heat resistance, damping and shock absorption, vibration isolation and sound absorption.

    2. For vibration and noise, soft joints are able to absorb most of the energy.

    3. Easy to install and disassemble, simple to maintain, saving man-hours and costs.

    4. It is suitable for all kinds of media pipe connection.

    5. Effectively reduce the transmission vibration of the pipeline, and reduce the impact and damage of the pipeline to the equipment.


    The field of application of the product

    Double ball rubber soft joints have a wide range of applications in municipal engineering, petrochemical, water treatment, metallurgy and power industry. Especially in pipeline engineering, due to the force deformation of pipeline joints, double-ball rubber soft joints have been more widely used. For example, oil pipelines, chemical pipelines, water supply pipelines, sewage pipelines, etc. all use double-ball rubber soft joints.


    Product parameters

    Nominal diameter

    Length

    (mm)

    Axial displacement(mm)

    Lateral

    displacement(mm)

    Angular

    displacement

    mminchElongationCompression
    401 1/216530504535°
    50216530504535°
    652 1/217530504535°
    80317535504535°
    100422535504035°
    125523035504035°
    150632535504035°
    200832535504035°
    2501032535603530°
    3001232535603530°
    3501435035603530°
    4001635035603530°
    4501835035603530°
    5002035035603530°
    6002440035603530°

    Product Applications

    Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron


    Inventory display

    Dn200 Double Sphere Galvanized Flanged Rubber Expansion Joint SS304 SS316 SS316L Cast Iron


    FAQ


    Q: Can you provide drawings and technical data?

    A: Yes, our professional technical department will design and provide drawings and technical data.


    Q: Can the products be manufactuered by customer's requirement?

    A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.


    Q: Visting factory is allowed or not?

    A: Yes, we welcome customers visiting our factory. Our factory is located Gongyi city,Henan province,China mainland.


    Q: How long is your delivery time?

    A: Depends on QTY, but normally no more than 20 working days.


    Q: What is your packing method?

    A: It is first wrapped in plastic film, then packed into a carton and then packed into a wooden case.
