Brand Name : | Liang He |
Model Number : | SD343H |
Certification : | ISO 9001 |
Price : | $105.00 set |
Payment Terms : | T/T, D/A, D/P, Western Union, MoneyGram, L/C |
Supply Ability : | 10000 piece per month |
Delivery Time : | 3-7 day |
Industrial turbine double flange cast steel butterfly valve with PTFE liner
Hard-sealed turbine flange telescopic butterfly valve components
Hard-seated turbine flange telescopic butterfly valve is mainly
composed of the following components:
1. Valve body: The valve body is the main part of the butterfly valve, which is
usually made of carbon steel, stainless steel or
chromium-molybdenum-vanadium steel.
2. Valve seat: Installed in the valve body, used to support and seal the valve
disc, usually made of high-temperature, corrosion-resistant metal
materials.
3. Butterfly plate: The key component of the butterfly valve, which is used to adjust
the flow rate of the medium, and is made of metal materials.
4. Drive device: Including manual, electric, pneumatic and worm gear rod
transmission, etc., used to control the opening and closing of the
valve disc.
5. Metal seal: The hard seal butterfly valve adopts a metal-to-metal seal or an
interchangeable metal seal, which is usually made of
high-temperature and corrosion-resistant materials such as
austenitic stainless steel.
6. Elastic compensation mechanism: Used to ensure the sealing effect, usually composed of spring and
pressure plate, able to adapt to a certain temperature and pressure
change.
Product Advantages
First, the structure is compact
The turbine flange telescopic butterfly valve adopts advanced
structural design, the overall structure is compact, and the space
occupied is small. At the same time, the valve has good telescopic
performance and can adapt to different pipeline layout needs.
Second, the sealing performance is good
The turbine flange telescopic butterfly valve has superior sealing
performance and can effectively prevent media leakage. The use of
high-quality sealing materials makes the valve maintain excellent
sealing effect in different working environments.
Third, easy to install
The valve is easy and quick to install, which can greatly shorten
the engineering installation time. The flange connection method can
achieve fast docking, which reduces the difficulty and cost of
on-site installation.
Fourth, the scope of application is wide
Turbine flange telescopic butterfly valve is suitable for a variety
of media working environment, such as steam, water, oil, etc. In
addition, it can withstand high temperature and pressure, and is
widely used in petroleum, chemical, electric power and other
fields.
Product parameters
DN (mm) | Structure length | Dimensions | 0.6MPa | 1.0MPa | 1.6MPa | Weight (kg) | ||||||||||||
H | H0 | A | B | D | D1 | D2 | n-d | D | D1 | D2 | n-d | D | D1 | D2 | n-d | |||
50 | 108 | 63 | 306 | 180 | 200 | 140 | 110 | 88 | 4-14 | 165 | 125 | 99 | 4-18 | 165 | 125 | 99 | 4-18 | 13 |
65 | 112 | 70 | 321 | 180 | 200 | 160 | 130 | 108 | 4-14 | 185 | 145 | 118 | 4-18 | 185 | 145 | 118 | 4-18 | 14 |
80 | 114 | 83 | 346 | 180 | 200 | 190 | 150 | 124 | 4-18 | 200 | 160 | 132 | 8-18 | 200 | 160 | 132 | 8-18 | 15.5 |
100 | 127 | 105 | 387 | 180 | 200 | 210 | 170 | 144 | 4-18 | 220 | 180 | 156 | 8-18 | 220 | 180 | 156 | 8-18 | 19.5 |
125 | 140 | 115 | 411 | 180 | 200 | 240 | 200 | 174 | 8-18 | 250 | 210 | 184 | 8-18 | 250 | 210 | 184 | 8-18 | 25.5 |
150 | 140 | 137 | 447 | 270 | 280 | 265 | 225 | 199 | 8-18 | 285 | 240 | 211 | 8-22 | 285 | 240 | 211 | 8-22 | 28.5 |
200 | 152 | 164 | 572 | 270 | 280 | 320 | 280 | 254 | 8-18 | 340 | 295 | 266 | 8-22 | 340 | 295 | 266 | 12-22 | 48 |
250 | 165 | 206 | 646 | 270 | 280 | 375 | 335 | 309 | 12-18 | 395 | 350 | 319 | 12-22 | 405 | 355 | 319 | 12-26 | 69 |
300 | 178 | 230 | 738 | 380 | 420 | 440 | 395 | 363 | 12-22 | 445 | 400 | 370 | 12-22 | 460 | 410 | 370 | 12-26 | 91 |
350 | 190 | 248 | 761 | 380 | 420 | 490 | 445 | 413 | 12-22 | 505 | 460 | 429 | 16-22 | 520 | 470 | 429 | 16-26 | 110 |
400 | 216 | 289 | 877 | 450 | 470 | 540 | 495 | 463 | 16-22 | 565 | 515 | 480 | 16-26 | 580 | 525 | 480 | 16-30 | 140 |
450 | 222 | 320 | 938 | 480 | 490 | 595 | 550 | 518 | 16-22 | 615 | 565 | 530 | 20-26 | 640 | 585 | 548 | 20-30 | 180 |
500 | 229 | 343 | 993 | 480 | 490 | 645 | 600 | 568 | 20-22 | 670 | 620 | 582 | 20-26 | 715 | 650 | 609 | 20-33 | 215 |
600 | 267 | 413 | 1131 | 480 | 490 | 755 | 705 | 667 | 20-26 | 780 | 725 | 682 | 20-30 | 840 | 770 | 720 | 20-36 | 290 |
700 | 292 | 478 | 1476 | 640 | 660 | 860 | 810 | 772 | 24-26 | 895 | 840 | 794 | 24-30 | 910 | 840 | 794 | 24-36 | 560 |
800 | 318 | 525 | 1533 | 640 | 660 | 975 | 920 | 878 | 24-30 | 1015 | 950 | 901 | 24-33 | 1025 | 950 | 901 | 24-39 | 910 |
900 | 330 | 585 | 1655 | 750 | 860 | 1075 | 1020 | 978 | 24-30 | 1115 | 1050 | 1001 | 28-33 | 1125 | 1050 | 1001 | 28-39 | 1500 |
1000 | 410 | 640 | 1765 | 850 | 900 | 1175 | 1120 | 1078 | 28-30 | 1230 | 1160 | 1112 | 28-36 | 1255 | 1170 | 1112 | 28-42 | 1750 |
1200 | 470 | 755 | 1995 | 850 | 900 | 1405 | 1340 | 1295 | 32-33 | 1455 | 1380 | 1328 | 32-39 | 1485 | 1390 | 1328 | 32-48 | 2180 |
1400 | 530 | 910 | 2310 | 1000 | 925 | 1630 | 1560 | 1510 | 36-36 | 1675 | 1590 | 1530 | 36-42 | 1685 | 1590 | 1530 | 36-48 | 2400 |
1600 | 600 | 1030 | 2595 | 1000 | 925 | 1830 | 1760 | 1710 | 40-36 | 1915 | 1820 | 1750 | 40-48 | 1930 | 1820 | 1750 | 40-56 | 2870 |
1800 | 670 | 1140 | 2810 | 1100 | 980 | 2045 | 1970 | 1918 | 44-39 | 2115 | 2020 | 1950 | 44-48 | 2130 | 2020 | 1950 | 44-56 | 3380 |
2000 | 760 | 1250 | 3100 | 1100 | 980 | 2265 | 2180 | 2125 | 48-42 | 2325 | 2230 | 2150 | 48-48 | 2345 | 2230 | 2150 | 48-62 | 4010 |

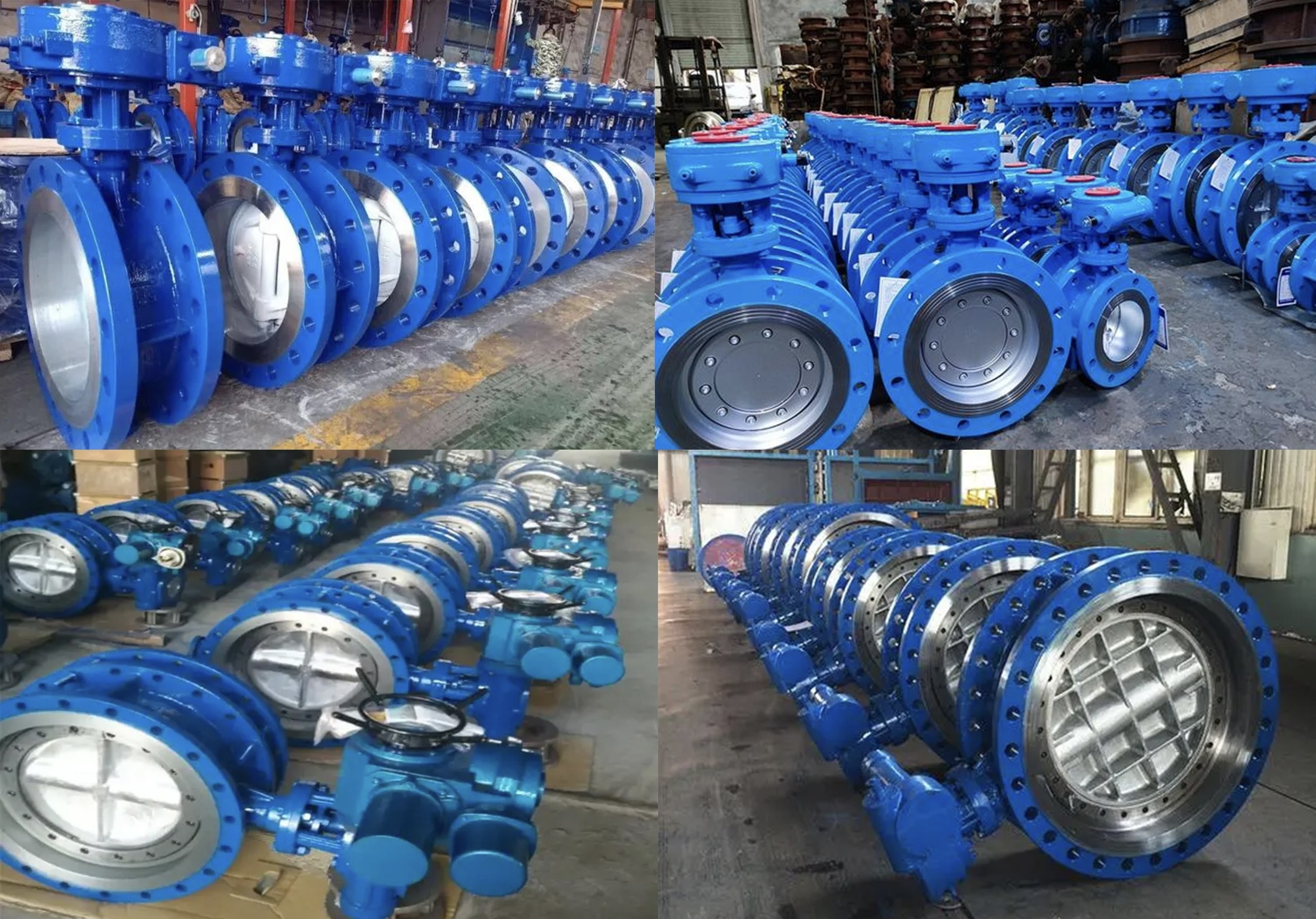

Lots of inventory

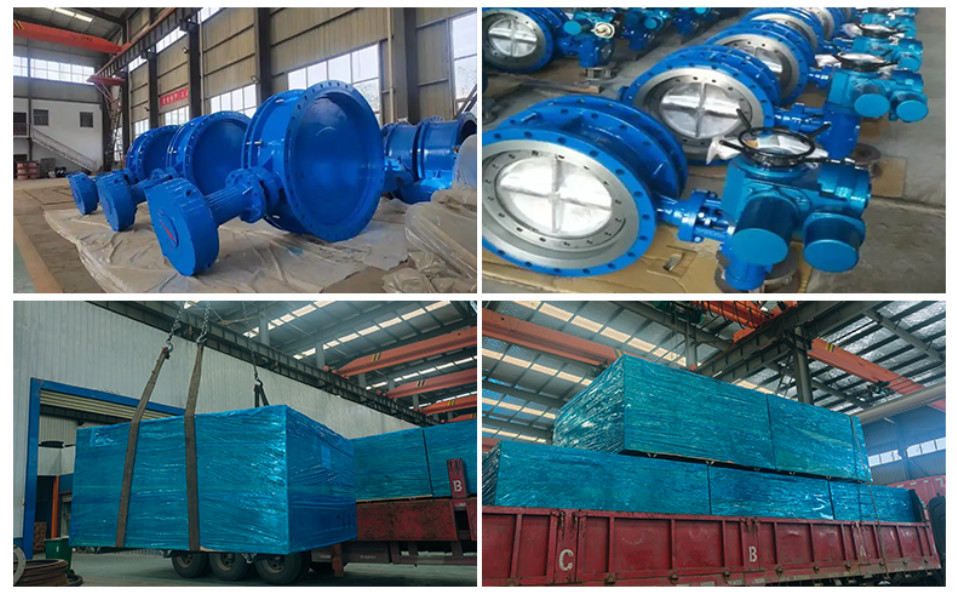

Product packaging
FAQ
Q: What are the body materials of hard seal turbine flange telescopic butterfly valves?
A: Ductile iron, cast steel, stainless steel, etc.
Q: Can I choose a different flange material?
A: Of course, we can make it according to customer requirements.
Q: Can I visit your factory before ordering?
A: Yes, welcome to visit our factory and check the quality.
Q: What is the pressure of a hard seal turbine flange telescopic
butterfly valve?
A: PN6/PN10/PN16.
Q: Can you provide drawings and technical information?
A: Yes, our professional technical department will design and provide drawings and technical data.
![]() |
