DN50 PN16 ductile iron Handle clamp soft seal butterfly valve
Product Introduction
Soft seal clamp manual butterfly valve is a component used to
realize pipeline system cut-off and flow control, which is widely
used in petroleum, chemical industry, metallurgy, hydropower and
other fields.
The butterfly plate of this butterfly valve is installed in the
diameter direction of the pipeline, and the disc-shaped butterfly
plate rotates around the axis, and the rotation angle is 0 ° ~ 90
°, and when the rotation reaches 90 °, the valve reaches a fully
open state.
Features
1. Simple structure, small size, light weight: This butterfly valve is composed of a few parts, small
installation size, small driving torque, simple and fast operation.
2. Good flow regulation function: When the butterfly valve is fully opened, the thickness of the
butterfly plate is the resistance of the medium when it flows
through the valve body, so the pressure drop generated by the valve
is very small, and it has good flow control characteristics.
3. Reliable sealing performance: The soft seal clamping manual butterfly valve adopts rubber or
PTFE and other materials as the sealing structure, which ensures
good sealing performance and is suitable for normal temperature and
pressure environment.
Product Applications
1. Petroleum, gas, chemical industry: Used to control fluid media, adapt to various industrial pipeline
systems.
2. Water treatment system: Used to regulate the water flow and cut off the water flow,
suitable for water supply and drainage pipelines.
3. Cooling water system of thermal power station: Used to adjust the flow and pressure of cooling water.

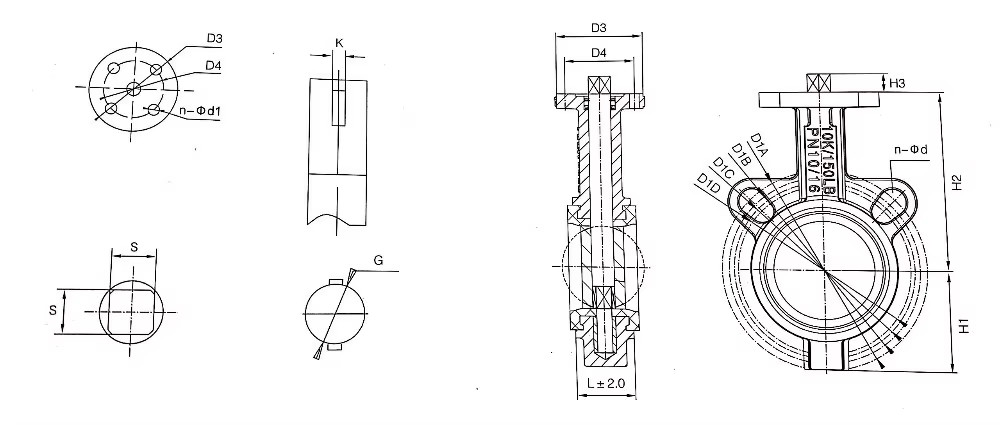

Main contour connection dimensions
| NPS | DN | L | 150LB | PN16 | PN10 | 10K | 150LB | PN16 | PN10 | 10K | H1 | H2 | H3 | S*S/G | K | D3 | D4 | n-φd1 |
| D1A | D1B | D1C | D1D | n-φd | n-φd | n-φd | n-φd |
| 1 1/2 | 40 | 42 | 98.4 | 110 | 110 | 105 | 4-19 | 4-18 | 4-18 | 4-16 | 67 | 133 | 14 | 9*9/12.6 | 3 | 65/90 | 50/70 | 4-7/10 |
| 2 | 50 | 42 | 120.7 | 125 | 125 | 120 | 4-19 | 4-18 | 4-18 | 4-16 | 67 | 133 | 14 | 9*9/12.6 | 3 | 65/90 | 50/70 | 4-7/10 |
| 2 1/2 | 65 | 45 | 139.7 | 145 | 145 | 140 | 4-19 | 8-18 | 8-18 | 4-16 | 75 | 137 | 14 | 9*9/12.6 | 3 | 65/90 | 50/70 | 4-7/10 |
| 3 | 80 | 45 | 152.4 | 160 | 160 | 150 | 4-19 | 8-18 | 8-18 | 8-16 | 82 | 159 | 14 | 9*9/12.6 | 3 | 65/90 | 50/70 | 4-7/10 |
| 4 | 100 | 52 | 190.5 | 180 | 180 | 175 | 8-19 | 8-18 | 8-18 | 8-16 | 105 | 171 | 18 | 11*11/15.7 | 5 | 90 | 70 | 4-10 |
| 5 | 125 | 54 | 215.9 | 210 | 210 | 210 | 8-22 | 8-18 | 8-18 | 8-20 | 118 | 189 | 22 | 14*14/18.9 | 5 | 90 | 70 | 4-10 |
| 6 | 150 | 54 | 241.3 | 240 | 240 | 240 | 8-22 | 8-22 | 8-22 | 8-20 | 135 | 209 | 22 | 14*14/18.9 | 5 | 90 | 70 | 4-10 |
| 8 | 200 | 59 | 298.5 | 295 | 295 | 290 | 8-22 | 12-22 | 8-22 | 12-20 | 165 | 258 | 24 | 17*17/22 | 5 | 125 | 102 | 4-12 |
| 10 | 250 | 66 | 362 | 355 | 350 | 355 | 12-26 | 12-26 | 12-22 | 12-22 | 200 | 299 | 30 | 22*22/28.4 | 8 | 125 | 102 | 4-12 |
| 12 | 300 | 77 | 413.8 | 410 | 400 | 400 | 12-26 | 12-26 | 12-22 | 16-22 | 230 | 337 | 30 | 22*22/31.6 | 8 | 150 | 125 | 4-14 |
| 14 | 350 | 77 | 476.3 | 470 | 460 | 445 | 12-29 | 16-26 | 16-22 | 16-22 | 274 | 350 | 45 | 22*22/31.6 | 8 | 150 | 125 | 4-14 |
| 16 | 400 | 86/102 | 539.8 | 525 | 515 | 510 | 12-29 | 16-30 | 16-26 | 16-24 | 304 | 405 | 50 | 27*27/33.2 | 10 | 175 | 140 | 4-18 |
| 18 | 450 | 105/114 | 577.9 | 585 | 565 | 565 | 16-32 | 20-30 | 20-26 | 20-24 | 335 | 409 | 50 | 27*27/38 | 10 | 175 | 140 | 4-22 |
| 20 | 500 | 130 | 635 | 650 | 620 | 620 | 20-32 | 20-33 | 20-26 | 20-24 | 368 | 460 | 60 | 36*36/41.1 | 10 | 210 | 165 | 4-22 |
| 24 | 600 | 151 | 749.3 | 770 | 725 | 730 | 20-33 | 20-36 | 20-30 | 24-30 | 428 | 516 | 70 | 36*36/50.6 | 16 | 210 | 165 | 4-22 |
| 28 | 700 | 163 | 863.6 | 840 | 840 | 840 | 28-35 | 24-36 | 24-30 | 24-30 | 520 | 648 | 80 | 46*46/62 | 18 | 300 | 254 | 8-18 |
| 32 | 800 | 190 | 977.9 | 950 | 950 | 850 | 28-39 | 24-39 | 24-33 | 28-30 | 580 | 668 | 80 | 46*46/62 | 18 | 300 | 254 | 8-18 |
| 36 | 900 | 203 | 1085.8 | 1050 | 1050 | 1050 | 32-39 | 28-39 | 28-33 | 28-30 | 656 | 720 | 118 | 55*55/75 | 20 | 300 | 254 | 8-18 |
| 40 | 1000 | 216 | 1200.2 | 1170 | 1160 | 1160 | 36-39 | 28-42 | 28-36 | 28-36 | 722 | 800 | 148 | 55*55/85 | 22 | 300 | 254 | 8-18 |
