Factory supply ductile iron SS304 stainless steel single band repair clamp

Product Introduction

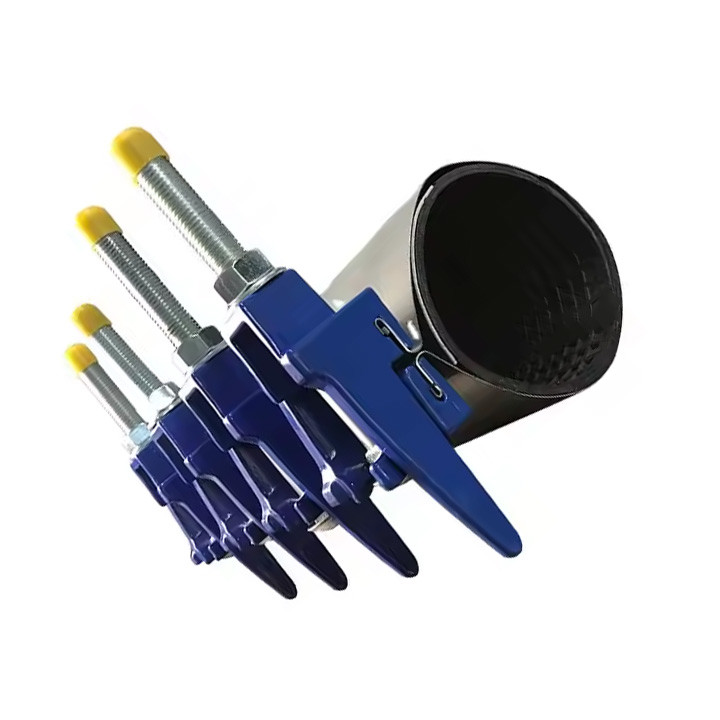

Iron single band repair clamp by means of mechanical clamping and sealing. Its main structure includes clamps, sealing rings and hoops. When there is a leak in the pipeline, the repairer presses the sealing ring on the pipe through the clamp, and uses the elastic deformation of the sealing ring to achieve sealing. The end of the seal is tapered and can be effectively and evenly sealed at overlapping joints as long as it is within the size of the hoop. The surface of the sealing ring is a fine grid, which can adapt to the rough, porous and irregular pipe surface, forming an effective seal around the entire circumference of the pipe.

Product Features

1. Wide range of application: Cast iron claw plate repairer is suitable for rapid repair of various damage such as fracture lines of cast iron pipes, steel pipes, cement pipes, PE, PVC, FRP pipes and other pipes.
2. Easy installation: The product is easy and fast to install, only one person and a wrench are needed to easily complete the pipeline repair, no longer need a large number of staff, and the pipeline can be quickly repaired without completely stopping the pressure and replacing the pipeline.
3. Material characteristics: The shell is made of stainless steel, which has the characteristics of anti-corrosion, high toughness and high strength, and can adapt to various harsh environments.

Product parameters

Applicable scenarios of the product

Iron single band repair clamp is suitable for pipes of various materials, such as cast iron pipes, steel pipes, cement pipes, PE, PVC, FRP pipes, etc. It is especially suitable for rapid repair of pipe sand holes, fractures, longitudinal cracks, etc. caused by aging and rust. The patch can be operated without stopping pressure and feeding, which greatly saves material and labor costs.

Product operation steps

1. Inspect the pipeline: First, check the damage of the pipeline and determine the location that needs to be repaired.
2. Install the fixture: Install the fixture on the pipeline to ensure that the fixture fits tightly with the pipeline.
3. Install the sealing ring: Place the sealing ring in the clamp to ensure that the sealing ring completely covers the damaged part.
4. Use hoops: Use hoops to press the clamp and the sealing ring to ensure that the sealing ring is deformed and sealed.
5. Check the sealing effect: Finally, check the sealing effect to make sure there is no leakage.

Different types of products are displayed

Stainless steel Connectors FCH patches FCTR connectors

plate patches

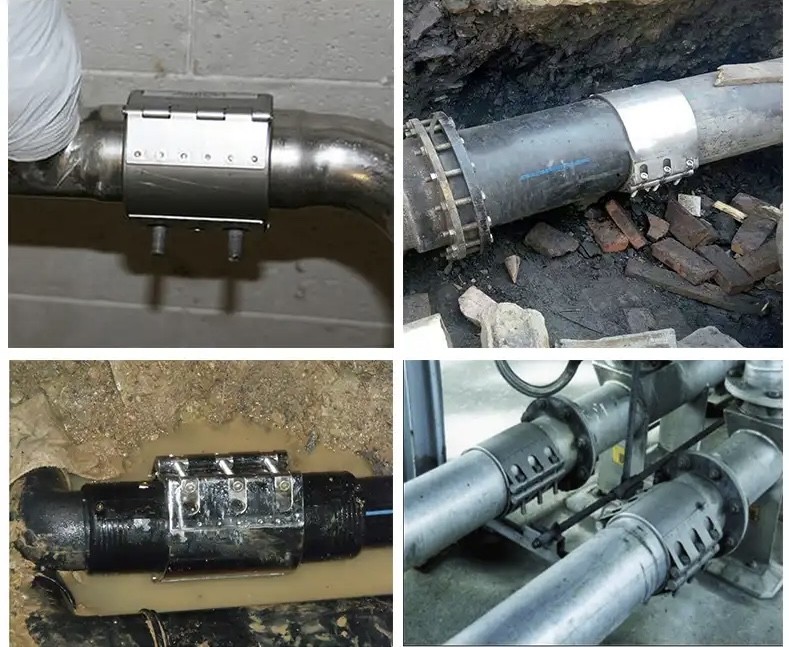

Product Applications

The company adheres to the business philosophy of "customer satisfaction is our first duty, all employees are responsible for creating quality, continuous improvement sets new heights, honest service builds reputation", and wholeheartedly provides high-quality products and professional services to new and old customers.

The factory mainly produces rubber expansion joints, duckbill check valves, dismantling joint, bellow expansion joints, compensators, repair clamp, 02S404 national standard waterproof casings, gate valves ,butterfly valves etc; and all products have passed ISO 9001:2015 quality management system certification; adopting national and industry standards, advanced manufacturing technology, strong R&D and manufacturing capabilities, they are widely used in water supply, drainage, electricity, chemical industry, gas, metallurgy, urban construction and environmental protection and other pipeline industries.
