    SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe

    Ask Lasest Price
    Brand Name : Liang He
    Model Number : FCTR
    Certification : ISO 9001
    Price : $11.3-18.6 per set
    Payment Terms : T/T, D/A, D/P, Western Union, MoneyGram, L/C
    Supply Ability : 8000 piece per month
    Delivery Time : 3-7day
    • Product Details
    • Company Profile

    SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe

    Customized large diameter pipe SS316 stainless steel oil grinder HDPE repair clamps


    Product Introduction

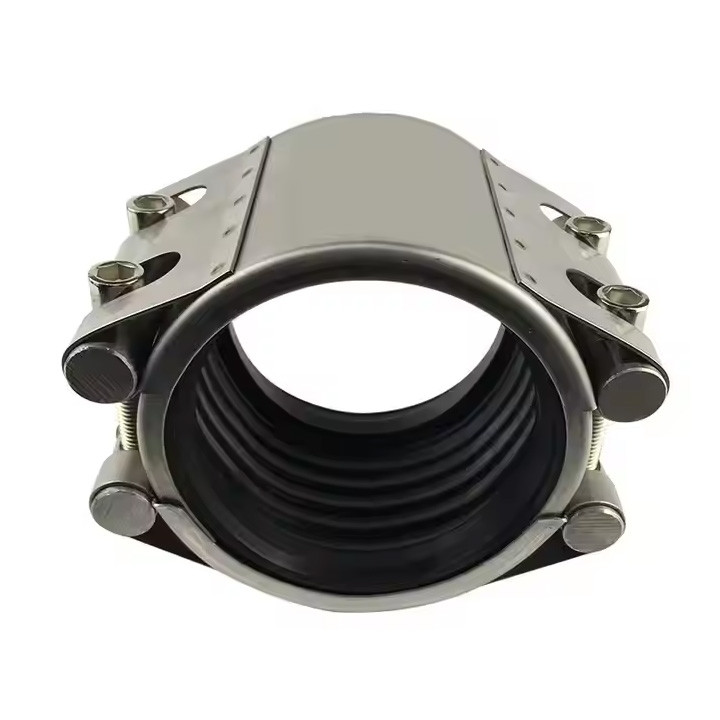

    FCTR connector is a toothed ring type pipe connector with strong sealing performance and pull-off resistance, used to connect PE and other non-metallic pipes, its toothed ring design can play a good role in the pipe connection of shock, impact resistance, noise reduction effect.


    Product Advantages

    1. Sealing performance and anti-pull-out ability: FCTR toothed ring connector has excellent sealing performance and anti-pull-out ability, ensuring the stability and reliability of pipe connection.
    2. Seismic and impact resistance: Its design can play a good role in the pipeline connection with good seismic and impact resistance, and reduce noise.
    3. Wide range of application: According to the different media in the pipeline, different rubber rings can be selected to bear, and the scope of application is wide.
    4. Simple operation: No need for professional installation, simple operation and easy installation.
    5. Compensation for axial displacement: During installation, it plays a good role in compensating for axial displacement.
    6. Reuse: It has good repetition and practicability, and can be repeatedly disassembled and used for temporary pipes.
    7. Flexible installation: There is no need to do special treatment on the pipe end during installation, and the connection can be completed if there is a gap between the two pipes.


    Product Parameters


    SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe


    NONAMEMATERIALQUANTITIES
    1Toothed ringsSS3042
    2Guard boardSS3041
    3Nut tie rodSS3041
    4Screw hole pull rodSS3041
    5Rubber sleeveEPDM1
    6Shell steel plateSS3041
    7BoltSS304N

    SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe


    Pipe OD

    (mm)

    Pipe Diameter

    Range(mm)

    PNDimensionsBoltBolt torque
    L1D
    21.721-23165735615
    2524.5-25.5165750615
    27.226-28165750615
    3231.5-32.5165755615
    3433-35165755615
    4039.5-41.5165755615
    4242-44165765615
    44.544-45.1165765615
    48.647-49165770615
    5453.3-54.6165770830
    5756.3-57.7165780830
    60.359-62168085830
    6362.2-63.9168085830
    76.175-781680100830
    79.978.8-80.81680100830
    88.988-92161071101050
    108106-110161071301050
    110108.9-111.2161071301050
    114.3112-116161071351050
    118116.6-119.2161071401050
    125123.6-126.5161071501050
    133131.5-134.4161071601050

    Tips:The above data is only part of the data, if you need a special size, please contact us.


    Product Applications

    1. New pipeline project: FCTR toothed ring connector can greatly shorten the construction period, reduce labor costs, and simple operation and easy installation in new pipeline projects.
    2. Temporary pipeline: This connector has good repetition and practicability, is suitable for temporary pipeline, and can be disassembled and used repeatedly.
    3. Narrow environment: Even in a narrow environment, FCTR toothed ring connectors can be quickly installed, and the installation environment requirements are low.


    Different types of products

    SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe

    Stainless steel plate repair FCH patcher

    SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe

    FCE connection repair Iron single band repair clamp
